LT6370IDD#PBF - Analog Devices

Description: Instrumentation Amplifiers Low Drift, Low Noise Instrumentation Amp

Download LT6370IDD#PBF Model

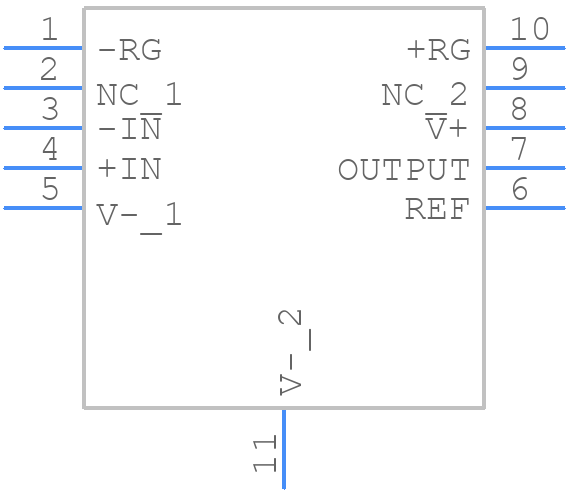

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6370IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom
3D Models
LT6370IDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom

LT6370IDD#PBF Details

  • Manufacturer Part Number:

    LT6370IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0008 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.037%

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

LT6370IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with an experienced PCB designer or Analog Devices' application notes for more specific guidance.
  • The choice of input and output capacitors for the LT6370 depends on the specific application requirements, such as the input voltage, output voltage, and output current. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with an experienced engineer or Analog Devices' application notes for more specific guidance. Additionally, it's recommended to use capacitors from reputable manufacturers that meet the required specifications.
  • The maximum operating temperature range for the LT6370 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may droop. It's recommended to consult the datasheet and Analog Devices' application notes for more information on the device's thermal performance and how to ensure reliable operation over the desired temperature range.
  • To ensure the LT6370 is stable and doesn't oscillate, it's recommended to follow the datasheet's guidelines for component selection and PCB layout. Additionally, it's important to ensure that the input and output capacitors are properly selected and placed, and that the device is properly decoupled from the power supply. It's also recommended to consult with an experienced engineer or Analog Devices' application notes for more specific guidance on ensuring stability and preventing oscillation.
  • The typical startup time for the LT6370 is around 1-2ms, depending on the input voltage and output voltage. However, this time can vary depending on the specific application and the device's configuration. It's recommended to consult the datasheet and Analog Devices' application notes for more information on the device's startup time and how to optimize it for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT6370IDD#PBF Overview

Use the download button to access the LT6370IDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT637, or try a keyword search, such as Instrumentation Amplifiers
