LT6370IDD#TRPBF - Analog Devices

Description: 25?V, 0.3?V/?C, Low Noise Instrumentation Amplifier

Download LT6370IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

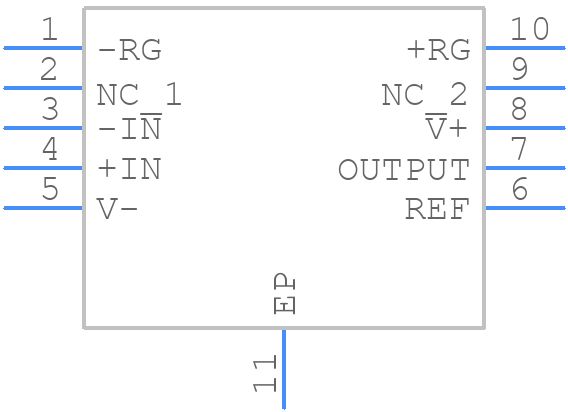

LT6370IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6370IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6370IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6370IDD#TRPBF Details

  • Manufacturer Part Number:

    LT6370IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0008 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.037%

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

LT6370IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output sense lines to minimize errors.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor and ensure the output voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The LT6370 can handle input voltages up to 80V, but it's recommended to keep the input voltage below 60V for optimal performance and reliability. Exceeding the maximum input voltage can lead to device damage or malfunction.
  • The LT6370 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques (e.g., heat sinks, thermal interfaces) to keep the device temperature below 100°C.
  • To troubleshoot issues with the LT6370, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the compensation network is correct. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the datasheet and application notes for guidance or contact Analog Devices' support team.
