LT6370IS8E#TRPBF - Analog Devices

Description: 25?V, 0.3?V/?C, Low Noise Instrumentation Amplifier

Download LT6370IS8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

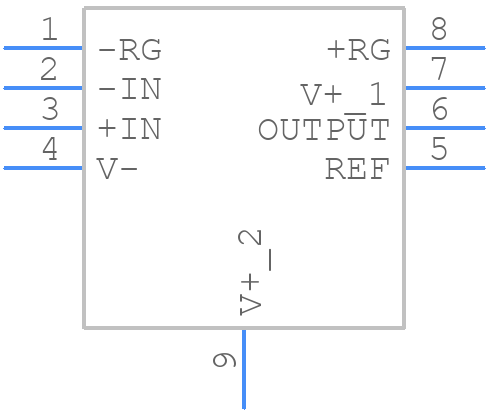

Symbol
LT6370IS8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6370IS8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom
3D Models
LT6370IS8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8E Package 8-Lead Plastic SOIC (Narrow .150 Inch) Exposed Pad
click to zoom

LT6370IS8E#TRPBF Details

  • Manufacturer Part Number:

    LT6370IS8E#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1857

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.001 µA

  • Input Offset Voltage-Max:

    55 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.037%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    2.75 mA

  • Supply Voltage Limit-Max:

    35 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    5.8 mm

LT6370IS8E#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6370 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor has a low equivalent series resistance (ESR). Additionally, the input and output capacitors should be placed close to the device, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The LT6370 can handle input voltages up to 80V, but the maximum recommended input voltage is 60V to ensure reliable operation and to prevent damage to the device.
  • The output capacitor should have a low ESR, a high ripple current rating, and a voltage rating that exceeds the maximum output voltage. A ceramic or film capacitor with a value between 10uF to 100uF is recommended, depending on the specific application requirements.
  • The LT6370 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to ensure that the device is properly heatsinked and that the operating temperature is within the recommended range.
