LT6372HMSE-0.2#PBF - Analog Devices

Description: Precision, Funneling Instrumentation Amplifier with Level Shift and Output Clamping

Download LT6372HMSE-0.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

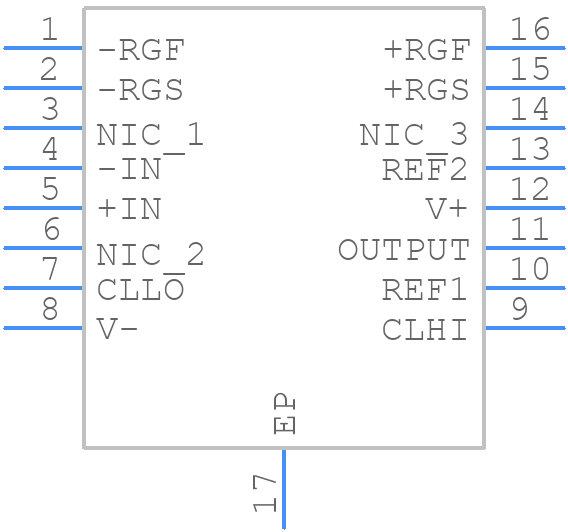

Symbol
LT6372HMSE-0.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6372HMSE-0.2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT6372HMSE-0.2#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT6372HMSE-0.2#PBF Details

  • Manufacturer Part Number:

    LT6372HMSE-0.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bandwidth (3dB)-Nom:

    2 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.008%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Gain-Max:

    200

  • Voltage Gain-Min:

    0.2

  • Width:

    3 mm

LT6372HMSE-0.2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6372 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the compensation guidelines provided in the datasheet and application notes. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them in the correct locations. Additionally, the input and output capacitors should be selected based on the specific application requirements.
  • The LT6372HMSE-0.2#PBF has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LT6372HMSE-0.2#PBF is a commercial-grade device, but Analog Devices Inc offers a high-reliability version, the LT6372HMSE-0.2#PBF-H, which is designed for high-reliability and aerospace applications. This version has undergone additional testing and screening to ensure its reliability in harsh environments.
  • To troubleshoot common issues with the LT6372, it's essential to follow a systematic approach. This includes checking the PCB layout, ensuring that the compensation components are correct, and verifying that the input and output capacitors are suitable for the application. Additionally, using a scope or other measurement tools can help identify the root cause of the issue. Analog Devices Inc also provides application notes and technical support to help troubleshoot issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT6372HMSE-0.2#PBF Overview

Use the download button to access the LT6372HMSE-0.2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT637, or try a keyword search, such as Instrumentation Amplifiers
