LT6372HUDC-0.2#PBF - Analog Devices

Description: Precision, Funneling Instrumentation Amplifier with Level Shift and Output Clamping

Download LT6372HUDC-0.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

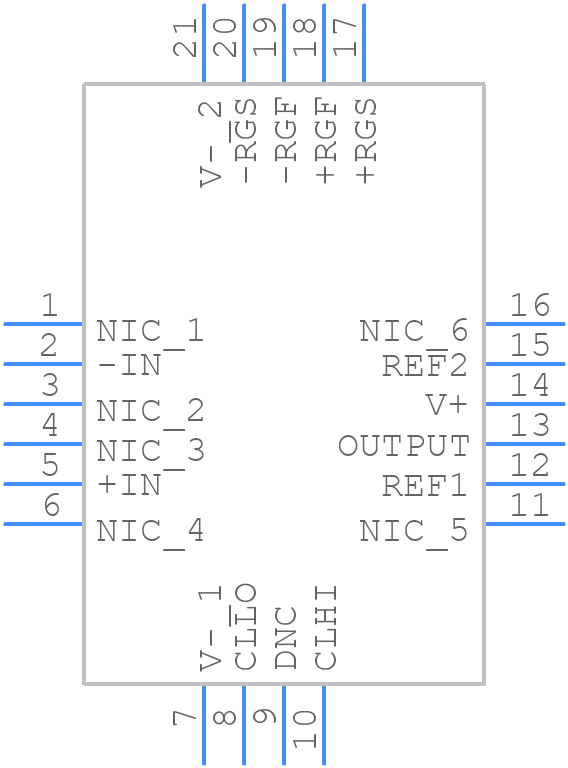

Symbol
LT6372HUDC-0.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6372HUDC-0.2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead (3mm × 4mm) Plastic QFN
click to zoom
3D Models
LT6372HUDC-0.2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead (3mm × 4mm) Plastic QFN
click to zoom

LT6372HUDC-0.2#PBF Details

  • Manufacturer Part Number:

    LT6372HUDC-0.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bandwidth (3dB)-Nom:

    2 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.008%

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    200

  • Voltage Gain-Min:

    0.2

  • Width:

    3 mm

LT6372HUDC-0.2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LT6372HUDC-0.2#PBF. Analog Devices recommends a 4-layer board with a solid ground plane, and to keep the input and output traces short and separate. Additionally, it's essential to place the input and output capacitors close to the device and to use a common ground point for the input and output returns.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network and to choose the correct values for the resistors and capacitors. Additionally, the input and output capacitors should be placed close to the device, and the input and output traces should be kept short and separate. It's also important to avoid parasitic inductance and capacitance in the layout.
  • The maximum power dissipation of the LT6372HUDC-0.2#PBF is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to calculate the power dissipation based on the specific application and to ensure that the device is operated within the safe operating area.
  • The LT6372HUDC-0.2#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to consult the datasheet and to evaluate the device's performance under the specific operating conditions. Additionally, it may be necessary to derate the device's power dissipation and to ensure that the device is operated within the safe operating area.
  • Common issues with the LT6372HUDC-0.2#PBF include oscillations, instability, and incorrect output voltage. To troubleshoot these issues, it's essential to follow a systematic approach, including checking the power supply, input and output voltages, and the compensation network. Additionally, it's important to consult the datasheet and to evaluate the device's performance under the specific operating conditions.
