LT6372HUDC-1#PBF - Analog Devices

Description: Precision Instrumentation Amplifier with Level Shift and Output Clamping

Download LT6372HUDC-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

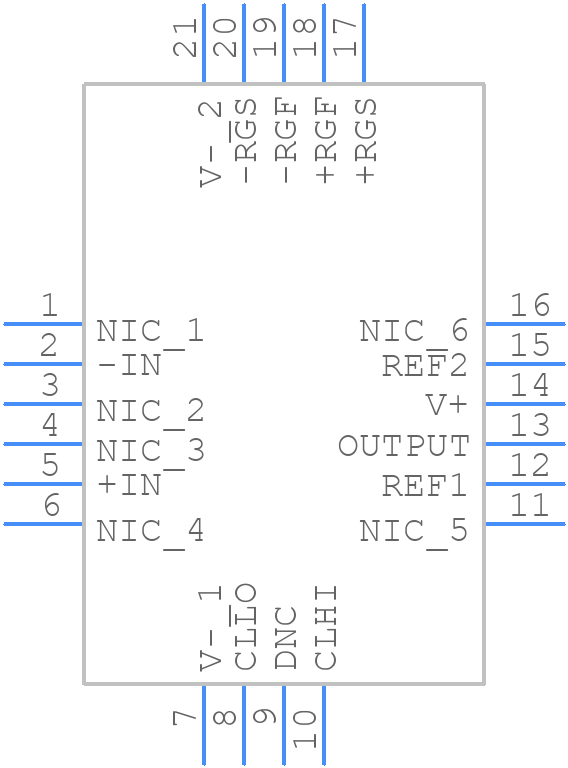

LT6372HUDC-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6372HUDC-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023
click to zoom
3D Models
LT6372HUDC-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023
click to zoom

LT6372HUDC-1#PBF Details

  • Manufacturer Part Number:

    LT6372HUDC-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

LT6372HUDC-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6372HUDC-1#PBF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be designed to minimize noise and parasitic inductance.
  • The maximum power dissipation of the LT6372HUDC-1#PBF is dependent on the operating conditions, such as the input voltage, output current, and ambient temperature. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
  • The LT6372HUDC-1#PBF is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. The device's power dissipation should be reduced, and the input and output capacitors should be selected to meet the high-temperature requirements.
  • To troubleshoot common issues with the LT6372HUDC-1#PBF, it's essential to follow a systematic approach, including checking the PCB layout, component values, and operating conditions. Additionally, using oscilloscopes and other measurement tools can help identify the root cause of the issue. The device's datasheet and application notes can also provide valuable troubleshooting guidance.
