LT6372IMSE-0.2#PBF - Analog Devices

Description: Precision, Funneling Instrumentation Amplifier with Level Shift and Output Clamping

Download LT6372IMSE-0.2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

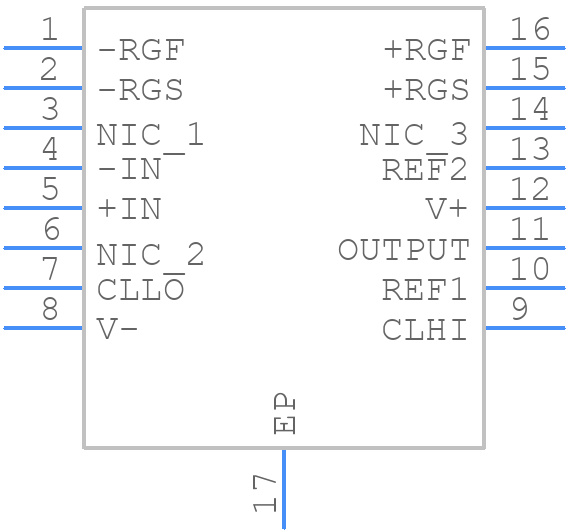

Symbol
LT6372IMSE-0.2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6372IMSE-0.2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT6372IMSE-0.2#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT6372IMSE-0.2#PBF Details

  • Manufacturer Part Number:

    LT6372IMSE-0.2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bandwidth (3dB)-Nom:

    2 MHz

  • Common-mode Reject Ratio-Min:

    74 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.008%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    200

  • Voltage Gain-Min:

    0.2

  • Width:

    3 mm

LT6372IMSE-0.2#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielded cables for input and output connections.
  • The gain and bandwidth of the amplifier can be optimized by adjusting the values of the external resistors and capacitors. Analog Devices provides a gain-bandwidth product graph in the datasheet, which can be used to determine the optimal component values for a specific application.
  • The maximum power dissipation of the LT6372IMSE-0.2#PBF is not explicitly stated in the datasheet, but it can be calculated based on the maximum operating temperature and thermal resistance. It's recommended to consult with an Analog Devices application engineer for specific guidance.
  • The LT6372IMSE-0.2#PBF is rated for operation up to 125°C, but the performance may degrade at high temperatures. It's recommended to consult with an Analog Devices application engineer to determine the suitability of the device for a specific high-temperature application.
  • Analog Devices provides a troubleshooting guide in the datasheet, which covers common issues such as oscillation, distortion, and noise. Additionally, the company offers application notes and technical support to help troubleshoot specific issues.
