LT6372IMSE-1#PBF - Analog Devices

Description: Precision Instrumentation Amplifier with Level Shift and Output Clamping

Download LT6372IMSE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

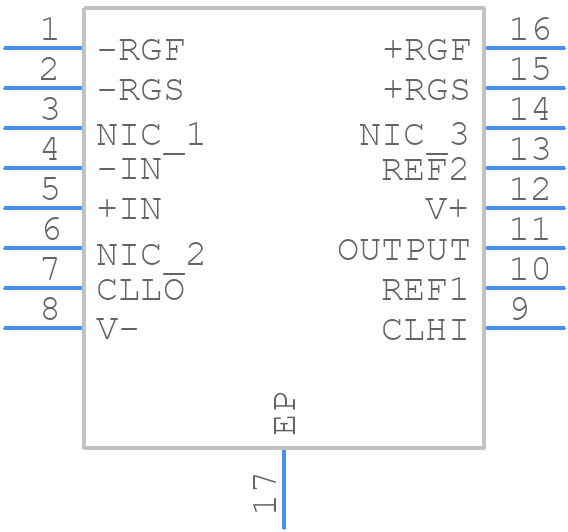

LT6372IMSE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6372IMSE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT6372IMSE-1#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT6372IMSE-1#PBF Details

  • Manufacturer Part Number:

    LT6372IMSE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bandwidth (3dB)-Nom:

    3.1 MHz

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Current-Max (IIO):

    0.0014 µA

  • Input Offset Voltage-Max:

    175 µV

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    11 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Width:

    3 mm

LT6372IMSE-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6372IMSE-1 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output sense lines to minimize errors.
  • To ensure stability, make sure to follow the recommended compensation network in the datasheet, and use a minimum output capacitance of 10uF. Additionally, ensure that the input and output voltage rails are well-regulated and decoupled, and that the device is operated within its recommended operating conditions.
  • The maximum junction temperature of the LT6372IMSE-1 is 150°C. It's essential to ensure that the device is operated within its recommended operating conditions to prevent overheating, which can affect its performance and reliability.
  • Yes, the LT6372IMSE-1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and its manufacturing process is compliant with the IATF 16949 standard.
  • To troubleshoot common issues with the LT6372IMSE-1, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the input and output voltage rails are well-regulated and decoupled, and that the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
