LT6375AHMS#PBF footprint, schematic symbol and 3D model by Analog Devices

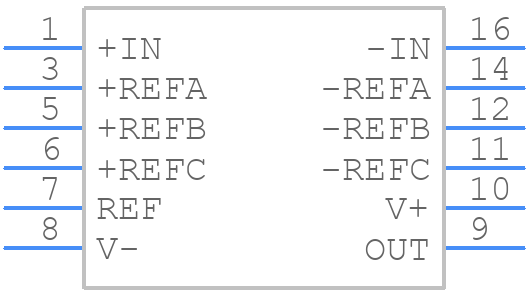

Symbol

click to zoom

PCB Footprints

LT6375AHMS#PBF - Analog Devices PCB footprint - Other - Other - MS Package 16 (12)-Lead Plastic MSOP with 4 Pins Removed (Reference LTC DWG # 05-08-1847 Rev B)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT6375AHMS#PBF
Part Number LT6375AHMS#PBF
Manufacturer Analog Devices
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MS Package 16 (12)-Lead Plastic MSOP with 4 Pins Removed (Reference LTC DWG # 05-08-1847 Rev B)
Released Date Mar 15, 2023
Last Modified Date Mar 16, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

LT6375AHMS#PBF Details

Manufacturer Part Number:
LT6375AHMS#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-16/12
Pin Count:
12
Manufacturer Package Code:
05-08-1847
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Bandwidth (3dB)-Nom:
0.575 MHz
Common-mode Reject Ratio-Min:
97 dB
Common-mode Reject Ratio-Nom:
107 dB
Frequency Compensation:
NO
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
4 mm
Low-Bias:
NO
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-30 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP12/16,.19,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.1 mm
Slew Rate-Min:
1.6 V/us
Slew Rate-Nom:
2.4 V/us
Supply Current-Max:
0.6 mA
Supply Voltage Limit-Max:
30 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Wideband:
NO
Width:
3 mm

LT6375AHMS#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT6375AHMS involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to maintain a stable input voltage and minimize noise on the input pins. Additionally, it's recommended to use a low-ESR output capacitor and to avoid using a capacitor with a high equivalent series resistance (ESR) on the input.
The maximum power dissipation of the LT6375AHMS is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
The LT6375AHMS is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and to ensure proper thermal management to prevent overheating.
To troubleshoot issues with the LT6375AHMS, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the input and output pins. If the issue persists, consult the datasheet and application notes for guidance.
