LT6550CMS#PBF - Analog Devices

Description: Linear Technology LT6550CMS#PBF, Video Amplifier 3-channel 340V/μs Rail to Rail O/P, 10-Pin MSOP

Download LT6550CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

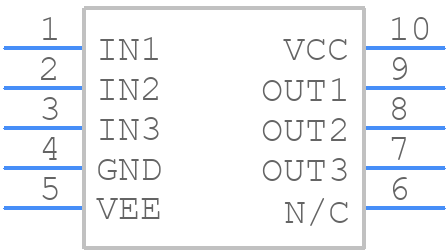

LT6550CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6550CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661)
click to zoom
3D Models
LT6550CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661)
click to zoom

LT6550CMS#PBF Details

  • Manufacturer Part Number:

    LT6550CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 5 MM, LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATE WITH 3V TO 12.6V SINGLE SUPPLY

  • Bandwidth-Nom:

    90000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6.3 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT6550CMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6550 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The choice of output filter components depends on the specific requirements of your application. In general, a 2nd-order LC filter with a cutoff frequency around 10-20 times the clock frequency is recommended. The values of the inductor and capacitor can be calculated using the equations provided in the datasheet.
  • The maximum clock frequency that can be used with the LT6550 is 1.6 GHz. However, the device can be used at higher frequencies with reduced performance. It's recommended to consult the datasheet and application notes for more information.
  • The LT6550 requires a bias voltage of 2.5V to 5.5V. A voltage regulator or a resistive divider network can be used to generate the bias voltage. It's recommended to use a low-noise bias voltage source to minimize noise and ensure optimal performance.
  • The typical power consumption of the LT6550 is around 150mW at a supply voltage of 3.3V and a clock frequency of 1.2 GHz. However, the actual power consumption may vary depending on the specific application and operating conditions.
