LT6657AHMS8-2.5#PBF - Analog Devices

Description: V-Ref Precision 2.5V 10mA Automotive Medical 8-Pin MSOP Tube

Download LT6657AHMS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

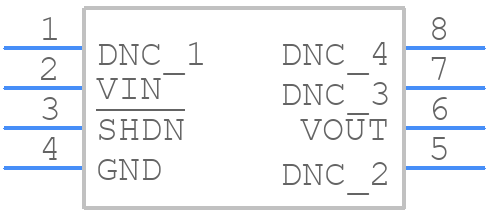

Symbol
LT6657AHMS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6657AHMS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom
3D Models
LT6657AHMS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom

LT6657AHMS8-2.5#PBF Details

  • Manufacturer Part Number:

    LT6657AHMS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.5025 V

  • Output Voltage-Min:

    2.4975 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    1.5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

LT6657AHMS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6657AHMS8-2.5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • To ensure stability, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high capacitance value, and that the input capacitor is properly sized to filter out noise and ripple.
  • The maximum power dissipation of the LT6657AHMS8-2.5 is dependent on the thermal resistance of the package and the ambient temperature. A safe estimate is to limit the power dissipation to 1.5W or less to ensure reliable operation.
  • The LT6657AHMS8-2.5 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • To troubleshoot issues with the LT6657AHMS8-2.5, check the input and output voltages, ensure that the capacitors are properly sized and placed, and verify that the device is properly soldered and connected. Use an oscilloscope to check for noise and oscillations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT6657AHMS8-2.5#PBF Overview

Use the download button to access the LT6657AHMS8-2.5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT665, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
