LT6657AHMS8-3#PBF - Analog Devices

Description: Voltage References 1.5ppm/ C Drift, L N, Bufed Ref

Download LT6657AHMS8-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

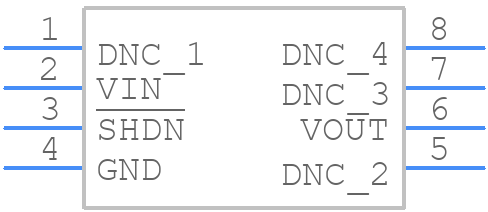

LT6657AHMS8-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6657AHMS8-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)-1
click to zoom
3D Models
LT6657AHMS8-3#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)-1
click to zoom

LT6657AHMS8-3#PBF Details

  • Manufacturer Part Number:

    LT6657AHMS8-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.003 V

  • Output Voltage-Min:

    2.997 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    1.5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

LT6657AHMS8-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6657AHMS8-3 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • To ensure stability, make sure to follow the recommended capacitor values and types, keep the output capacitor ESR low, and avoid using capacitors with high ESL. Also, ensure the device is properly decoupled and the input voltage is well-regulated.
  • The LT6657AHMS8-3 can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. Be sure to check the device's thermal performance and power dissipation limits.
  • The LT6657AHMS8-3 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to check the device's thermal derating curves and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • Use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to protect the device from voltage transients and surges. Also, ensure the input capacitor is rated for the maximum input voltage and has a low ESR.
