LT6658AIMSE-2.5#PBF - Analog Devices

Description: V-Ref Precision 2.5V 150mA Automotive 16-Pin MSOP EP Tube

Download LT6658AIMSE-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

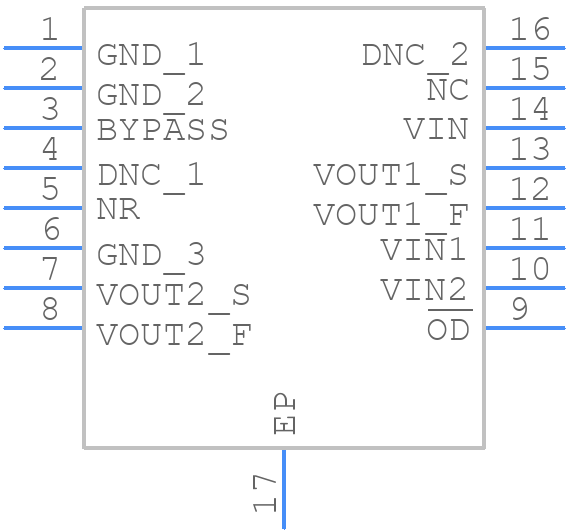

Symbol
LT6658AIMSE-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6658AIMSE-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT6658AIMSE-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT6658AIMSE-2.5#PBF Details

  • Manufacturer Part Number:

    LT6658AIMSE-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.50125 V

  • Output Voltage-Min:

    2.49875 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3 mm

LT6658AIMSE-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6658 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor ESR within the specified range. Also, avoid using capacitors with high ESL or ESR, and keep the feedback loop impedance low. Additionally, a small series resistor (e.g., 1Ω) can be added to the output to improve stability.
  • The maximum output current of the LT6658 is 20mA, but this can be limited by the input voltage, output voltage, and package thermal considerations. Be sure to check the datasheet for specific limitations and thermal derating factors.
  • Yes, the LT6658 can be used as a voltage reference for an ADC or DAC, but it's essential to consider the noise and drift specifications of the LT6658 and ensure they meet the requirements of the ADC or DAC. Additionally, the output impedance of the LT6658 should be considered when driving a capacitive load.
  • The power dissipation of the LT6658 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Be sure to check the datasheet for specific values and thermal derating factors.
