LT6658BIMSE-3.3#PBF - Analog Devices

Description: Voltage References Low Noise, High Current, Precision Reference

Download LT6658BIMSE-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

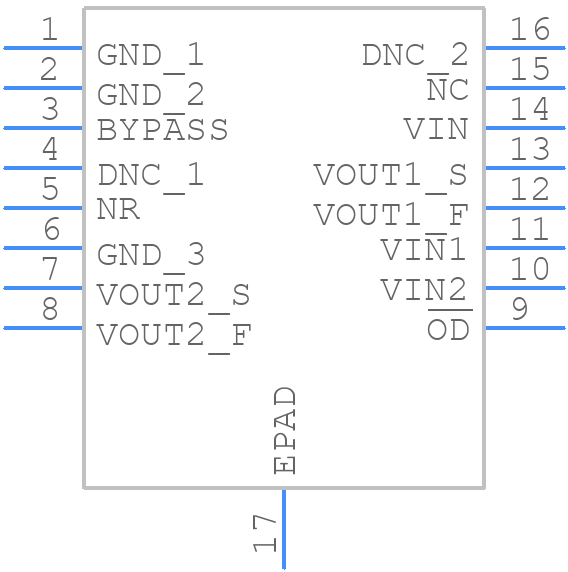

LT6658BIMSE-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6658BIMSE-3.3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP16
click to zoom
3D Models
LT6658BIMSE-3.3#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP16
click to zoom

LT6658BIMSE-3.3#PBF Details

  • Manufacturer Part Number:

    LT6658BIMSE-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.3033 V

  • Output Voltage-Min:

    3.2967 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3 mm

LT6658BIMSE-3.3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6658BIMSE-3.3 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the LT6658BIMSE-3.3 output voltage, it is essential to follow the recommended output capacitor selection guidelines, including the type, value, and ESR of the capacitor. Additionally, the output voltage should be decoupled with a 10uF or larger ceramic capacitor to reduce noise and oscillations.
  • The maximum input voltage that the LT6658BIMSE-3.3 can handle is 15V. Exceeding this voltage can cause damage to the device. It is recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The LT6658BIMSE-3.3 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • To troubleshoot issues with the LT6658BIMSE-3.3, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise, oscillations, or other anomalies on the output voltage. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
