LT7101MPUHE#TRPBF - Analog Devices

LT7101MPUHE#TRPBF Details

• Manufacturer Part Number:

  LT7101MPUHE#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

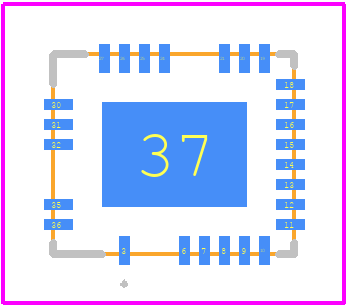

• Package Description:

  QFN-36

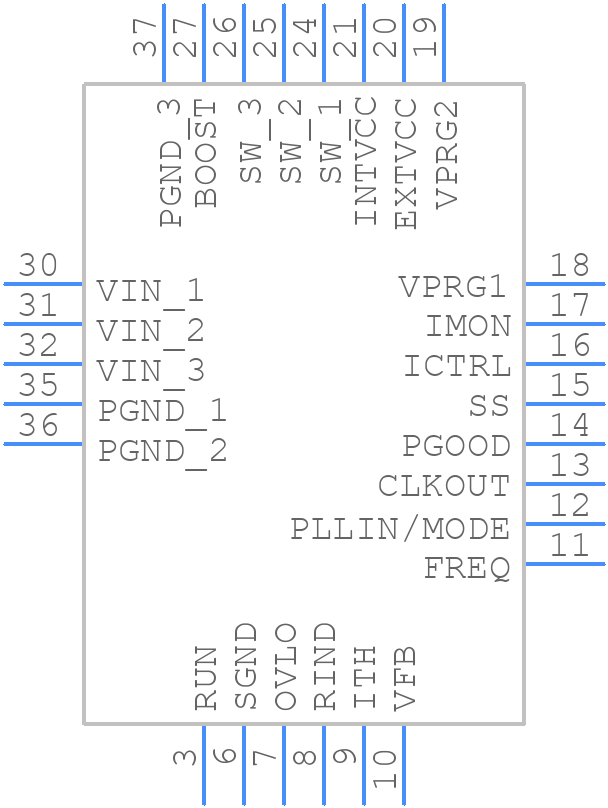

• Pin Count:

  26

• Manufacturer Package Code:

  05-08-1983

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  OUTPUT VOLTAGE IS FROM 1V TO 105V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  105 V

• Input Voltage-Min:

  4.4 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PQCC-N36

• JESD-609 Code:

  e3

• Length:

  6 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  1.85 A

• Output Voltage-Max:

  105 V

• Output Voltage-Min:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2000 kHz

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
