LT8228EFE#TRPBF - Analog Devices

Description: Bidirectional Synchronous 100V Buck/Boost Controller with Reverse Supply, Reverse Current and Fault Protection

Download LT8228EFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

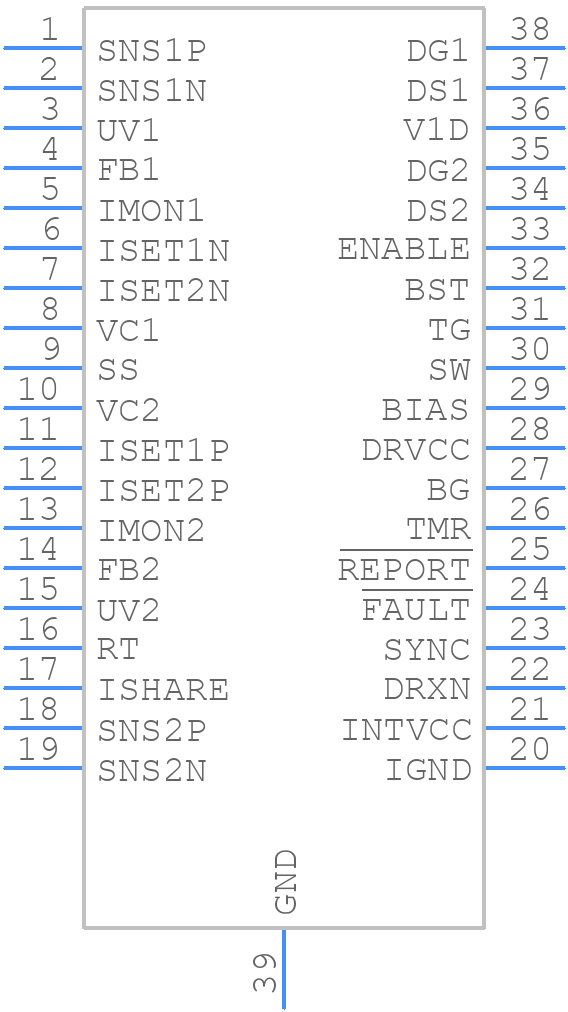

LT8228EFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8228EFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT8228EFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LT8228EFE#TRPBF Details

  • Manufacturer Part Number:

    LT8228EFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    660 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT8228EFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8228EFE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within its recommended operating conditions. It's also recommended to add a small resistor (e.g. 1Ω) in series with the output capacitor to improve stability.
  • The LT8228EFE can operate in ambient temperatures up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • Yes, the LT8228EFE is designed to operate in high-vibration environments. However, it's recommended to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the expected vibration levels. Additionally, it's recommended to use a conformal coating to protect the device from moisture and contaminants.
  • To troubleshoot issues with the LT8228EFE, start by verifying that the device is properly powered and that the input and output voltages are within the recommended specifications. Check for any signs of overheating, and ensure that the device is properly cooled. Use an oscilloscope to check for any unusual voltage or current waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
