LT8310EFE#TRPBF - Analog Devices

Description: 100VIN Forward Converter Controller

Download LT8310EFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

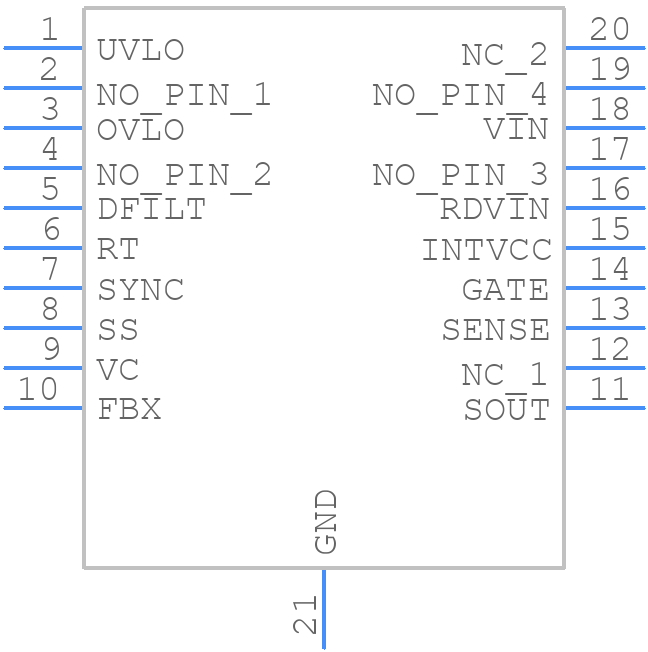

LT8310EFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8310EFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)_2025-1
click to zoom
3D Models
LT8310EFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)_2025-1
click to zoom

LT8310EFE#TRPBF Details

  • Manufacturer Part Number:

    LT8310EFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM WIDTH, LEAD FREE, PLASTIC, TSSOP-20/16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1924

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    4.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    525 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT8310EFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8310EFE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be chosen to meet the recommended ESR and ESL values. It's also important to ensure that the device is operated within its recommended operating conditions, including input voltage, output current, and temperature range.
  • The LT8310EFE can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. It's essential to ensure proper thermal management, including heat sinking and airflow, to prevent overheating.
  • Yes, the LT8310EFE is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the LT8310EFE, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check the PCB layout for any errors or omissions, and ensure that the component values meet the recommended specifications. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8310EFE#TRPBF Overview

Use the download button to access the LT8310EFE#TRPBF schematic symbol, PCB footprint, and 3D model.
