LT8310IFE#TRPBF footprint, schematic symbol and 3D model by Analog Devices

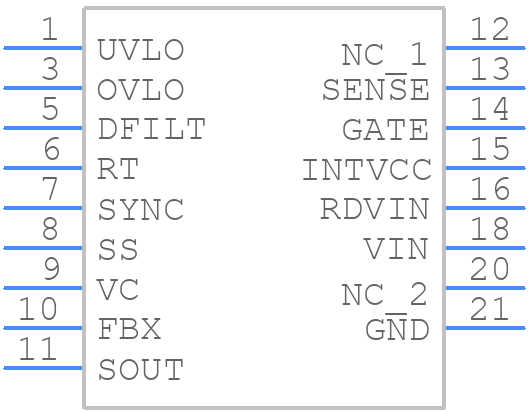

Symbol

click to zoom

PCB Footprints

LT8310IFE#TRPBF - Analog Devices PCB footprint - Other - Other - LT8310IFE#TRPBF-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT8310IFE#TRPBF
Part Number LT8310IFE#TRPBF
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LT8310IFE#TRPBF-1
Released Date Feb 23, 2026
Last Modified Date Feb 23, 2026 2:52 PM UTC
Pinout / Pin List Click Here (Member Only)

LT8310IFE#TRPBF Details

Manufacturer Part Number:
LT8310IFE#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
4.40 MM WIDTH, LEAD FREE, PLASTIC, TSSOP-20/16
Pin Count:
16
Manufacturer Package Code:
05-08-1924
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
100 V
Input Voltage-Min:
6 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
4.6 mA
Surface Mount:
YES
Switcher Configuration:
SINGLE
Switching Frequency-Max:
525 kHz
Technology:
BIPOLAR
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

LT8310IFE#TRPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT8310 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
The selection of input and output capacitors for the LT8310 depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, and it's essential to follow them.
The maximum ambient temperature for the LT8310 is 125°C, but it's essential to consider the junction temperature (TJ) which should not exceed 150°C. The device's thermal performance can be improved by using a heat sink or a thermally enhanced package.
To ensure the LT8310 is stable and doesn't oscillate, it's essential to follow the layout guidelines, use the recommended capacitors, and ensure the input and output voltage rails are properly decoupled. Additionally, the device's compensation pin should be properly connected to the output capacitor, and the feedback network should be designed to provide sufficient phase margin.
The maximum output current capability of the LT8310 is 2A, but it's essential to consider the thermal performance and the output voltage when designing the application. The device's output current capability can be limited by the thermal performance, and it's essential to ensure the device is properly cooled to maintain its performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LT8310IFE#TRPBF Overview

Use the download button to access the LT8310IFE#TRPBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LT831, or try a keyword search, such as Switching Regulator or Controllers
