LT8310MPFE#TRPBF footprint, schematic symbol and 3D model by Analog Devices

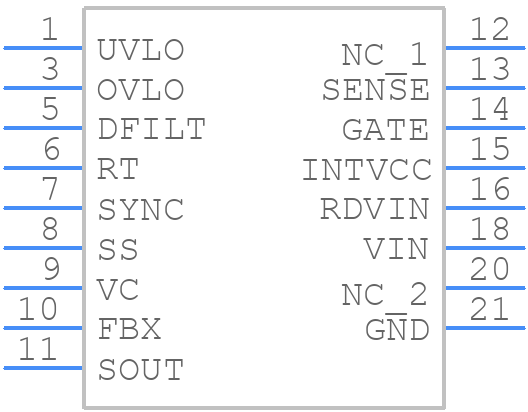

Symbol

click to zoom

PCB Footprints

LT8310MPFE#TRPBF - Analog Devices PCB footprint - Other - Other - TSSOP-0

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT8310MPFE#TRPBF
Part Number LT8310MPFE#TRPBF
Manufacturer Analog Devices
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TSSOP-0
Released Date Feb 23, 2026
Last Modified Date Feb 23, 2026 2:52 PM UTC
Pinout / Pin List Click Here (Member Only)

LT8310MPFE#TRPBF Details

Manufacturer Part Number:
LT8310MPFE#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
4.40 MM WIDTH, LEAD FREE, PLASTIC, TSSOP-20/16
Pin Count:
16
Manufacturer Package Code:
05-08-1924
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
100 V
Input Voltage-Min:
6 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
4.6 mA
Surface Mount:
YES
Switcher Configuration:
SINGLE
Switching Frequency-Max:
525 kHz
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm

LT8310MPFE#TRPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT8310 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within its recommended operating conditions.
The LT8310 can operate in ambient temperatures up to 125°C, but the device's junction temperature must not exceed 150°C. The device's thermal resistance (θJA) is 45°C/W, so the ambient temperature must be derated accordingly to ensure reliable operation.
Yes, the LT8310 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, additional testing and validation may be required for specific applications.
To troubleshoot issues with the LT8310, start by verifying that the device is properly powered and that the input and output voltages are within the recommended specifications. Check for proper PCB layout and component selection, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes and other diagnostic tools to identify any issues with the device's operation.
