LT8330EDDB#TRPBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 1A, 60V Switch

Download LT8330EDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

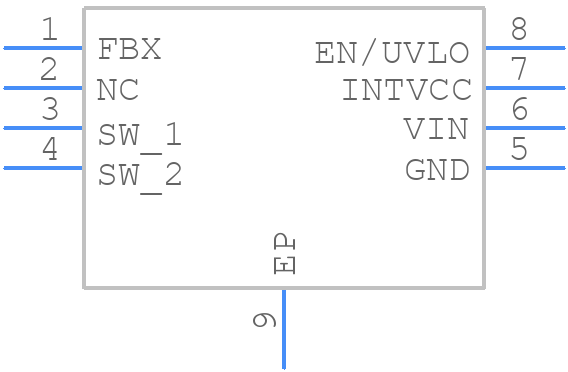

LT8330EDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8330EDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package
click to zoom
3D Models
LT8330EDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package
click to zoom

LT8330EDDB#TRPBF Details

  • Manufacturer Part Number:

    LT8330EDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN SEPIC MODE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LT8330EDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8330EDDB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LT8330EDDB, ensure that the input and output capacitors are of high quality and have low ESR, use a low-impedance power source, and minimize the noise on the input and output lines. Additionally, ensure that the PCB layout is optimized for the device.
  • The maximum operating temperature range for the LT8330EDDB is -40°C to 125°C. However, the device can operate at a reduced performance level up to 150°C.
  • Yes, the LT8330EDDB is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of high-reliability applications.
  • To troubleshoot issues with the LT8330EDDB, start by checking the input and output voltages, ensuring that they are within the recommended range. Check the PCB layout for any errors or omissions, and ensure that the device is properly soldered. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8330EDDB#TRPBF Overview

Use the download button to access the LT8330EDDB#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT833, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
