LT8333RDD#PBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 3A, 40V Switch

Download LT8333RDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

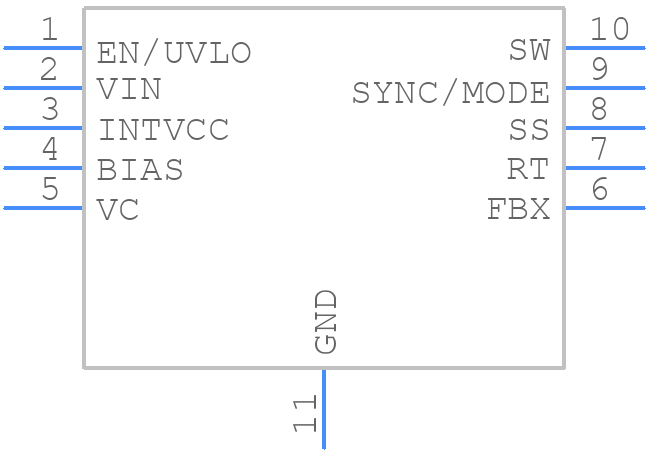

LT8333RDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8333RDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)_2022
click to zoom
3D Models
LT8333RDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm × 3mm)_2022
click to zoom

LT8333RDD#PBF Details

  • Manufacturer Part Number:

    LT8333RDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8333RDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8333RDD#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and placed close to the device. It's also important to decouple the input and output with capacitors to prevent oscillation.
  • The maximum input voltage that the LT8333RDD#PBF can handle is 42V. Exceeding this voltage can cause damage to the device.
  • The LT8333RDD#PBF is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures. Consult the datasheet for more information on temperature derating.
  • To troubleshoot issues with the LT8333RDD#PBF, start by checking the PCB layout and component values against the recommended values in the datasheet. Ensure that the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the datasheet and application notes for more troubleshooting guidance.
