LT8333RDD#TRPBF - Analog Devices

Description: Switching Voltage Regulators Low IQ Boost/SEPIC/Inverting Converter with 3A, 40V Switch

Download LT8333RDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

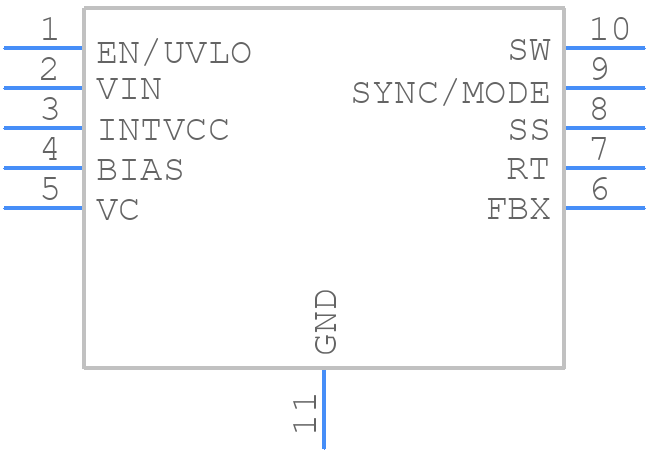

LT8333RDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8333RDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT8333RDD#TRPBF
click to zoom
3D Models
LT8333RDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - LT8333RDD#TRPBF
click to zoom

LT8333RDD#TRPBF Details

  • Manufacturer Part Number:

    LT8333RDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8333RDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8333 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The LT8333 can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. The device's power dissipation should be calculated and ensured to be within the safe operating area to prevent overheating.
  • Yes, the LT8333 is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly soldered and the PCB is securely fastened to prevent mechanical stress on the device. Additionally, the device's operating conditions should be monitored to ensure that it remains within its recommended specifications.
  • To troubleshoot issues with the LT8333, start by verifying that the device is properly powered and that the input and output voltages are within the recommended specifications. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to monitor the input and output waveforms, and consult the datasheet and application notes for guidance.
