LT8334RDE#TRPBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 5A, 40V Switch

Download LT8334RDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

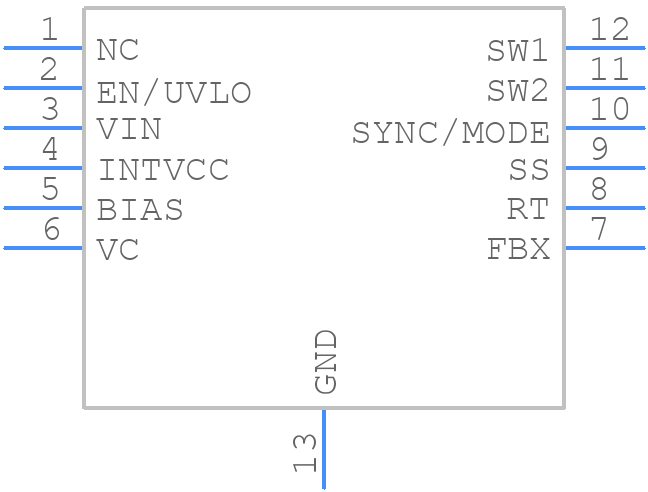

LT8334RDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8334RDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LT8334RDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (4mm × 3mm)
click to zoom

LT8334RDE#TRPBF Details

  • Manufacturer Part Number:

    LT8334RDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8334RDE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8334 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and add a small series resistor (e.g., 1Ω) between the output and the capacitor. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range.
  • The LT8334 can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance and reliability.
  • The LT8334 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider the device's thermal characteristics when designing for high-temperature applications.
  • The output capacitor should be selected based on the desired output voltage ripple, output current, and stability requirements. A low-ESR capacitor with a value between 10μF to 47μF is recommended. The capacitor's voltage rating should be at least 1.5 times the output voltage.
