LT8336EV#WPBF - Analog Devices

Description: Boost Switching Regulator IC Positive Adjustable 2.7V 1 Output 2.5A 16-TFQFN Exposed Pad -40°C ~ 125°C

Download LT8336EV#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

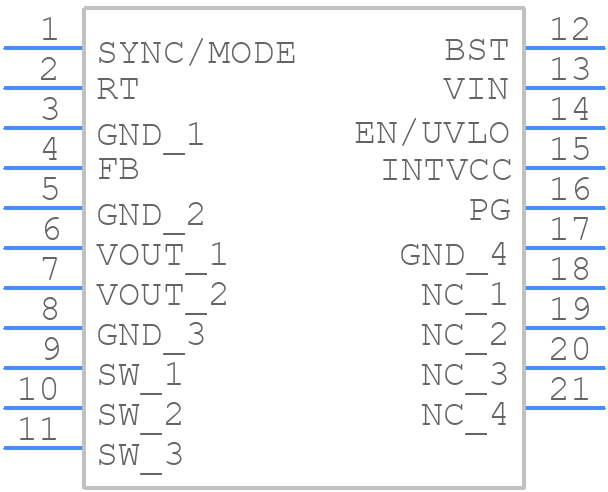

LT8336EV#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8336EV#WPBF - Analog Devices PCB footprint - Other - Other - LQFN Package 16-Lead (3mm × 3mm × 0.94mm)_2026
click to zoom
3D Models
LT8336EV#WPBF - Analog Devices - 3D model - Other - LQFN Package 16-Lead (3mm × 3mm × 0.94mm)_2026
click to zoom

LT8336EV#WPBF Details

  • Manufacturer Part Number:

    LT8336EV#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1626

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.3 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    2.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8336EV#WPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8336EV#WPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and placed close to the device. It's also important to decouple the input and output with capacitors to prevent oscillation.
  • The maximum input voltage that the LT8336EV#WPBF can handle is 80V. Exceeding this voltage can cause damage to the device.
  • The LT8336EV#WPBF is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures. Consult the datasheet for more information on temperature derating.
  • To troubleshoot issues with the LT8336EV#WPBF, start by checking the PCB layout and component values against the recommended values in the datasheet. Verify that the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the datasheet and application notes for more troubleshooting tips.
