LT8338EMSE#PBF - Analog Devices

Description: 40V, 1.2A Micropower Synchronous Boost Converter with PassThru

Download LT8338EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

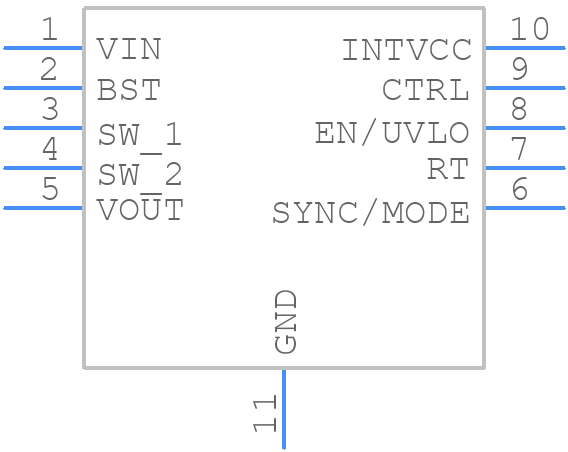

LT8338EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8338EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad-2021
click to zoom
3D Models
LT8338EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad-2021
click to zoom

LT8338EMSE#PBF Details

  • Manufacturer Part Number:

    LT8338EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    AEC QUALIFICATION IS IN PROGRESS

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.9 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8338EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8338EMSE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements. The datasheet provides a stability analysis section that can help designers evaluate the stability of the device in their specific application.
  • The maximum input voltage that the LT8338EMSE can handle is 80V. However, the recommended maximum input voltage is 60V to ensure reliable operation and to prevent damage to the device.
  • The LT8338EMSE is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to evaluate the device's performance in the specific application environment.
  • To troubleshoot issues with the LT8338EMSE, start by verifying that the input and output voltages are within the recommended ranges. Check the PCB layout for any errors or omissions, and ensure that the component values are correct. Use an oscilloscope to evaluate the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
