LT8338EMSE#TRPBF - Analog Devices

Description: 40V, 1.2A Micropower Synchronous Boost Converter with PassThru

Download LT8338EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

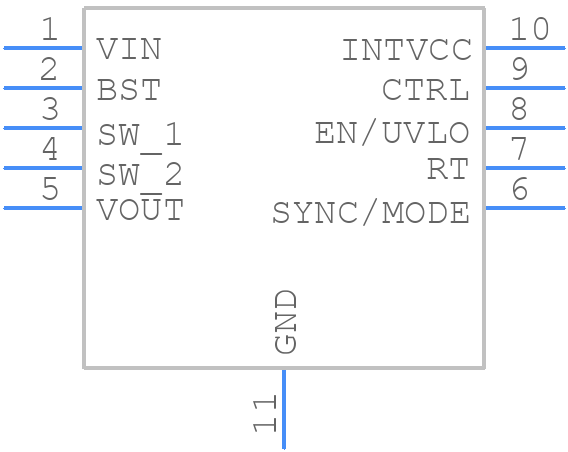

LT8338EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8338EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad-+-+
click to zoom
3D Models
LT8338EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP, Exposed Die Pad-+-+
click to zoom

LT8338EMSE#TRPBF Details

  • Manufacturer Part Number:

    LT8338EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8338EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8338EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value and type, and add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins. Additionally, ensure that the input and output voltage rails are well-bypassed and decoupled.
  • The LT8338EMSE is rated for operation from -40°C to 125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the LT8338EMSE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is manufactured with a high-reliability process. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the LT8338EMSE, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to monitor the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8338EMSE#TRPBF Overview

Use the download button to access the LT8338EMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
