LT8362HDD#WTRPBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 2A, 60V Switch

Download LT8362HDD#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

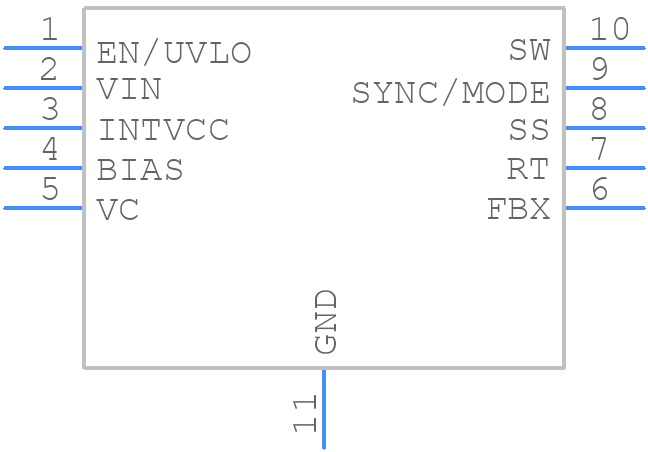

LT8362HDD#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8362HDD#WTRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT8362HDD#WTRPBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT8362HDD#WTRPBF Details

  • Manufacturer Part Number:

    LT8362HDD#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO BE CONFIGURED AS SEPIC/INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8362HDD#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LT8362HDD's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the input and output capacitors close to the IC. The datasheet provides a recommended layout, but it's also recommended to consult with experienced PCB designers and to simulate the layout using tools like LTspice or ADS.
  • The selection of input and output capacitors depends on the specific application and requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult with capacitor manufacturers and to consider factors like voltage rating, temperature range, and physical size.
  • The LT8362HDD is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult with Analog Devices' application notes and to perform thermal simulations to ensure the device operates within its safe operating area.
  • Stability is critical for the LT8362HDD. To ensure stability, it's recommended to follow the datasheet's guidelines for component selection and PCB layout. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the VCC pin and ground to filter out high-frequency noise. It's also recommended to simulate the circuit using tools like LTspice to verify stability.
  • The typical efficiency of the LT8362HDD depends on the input voltage, output voltage, and load current. According to the datasheet, the device can achieve up to 95% efficiency in some configurations. However, actual efficiency may vary depending on the specific application and implementation. It's recommended to consult with Analog Devices' application notes and to perform efficiency measurements in the actual application.
