LT8362IDD#TRPBF - Analog Devices

Description: Low IQ Boost/SEPIC/Inverting Converter with 2A, 60V Switch

Download LT8362IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

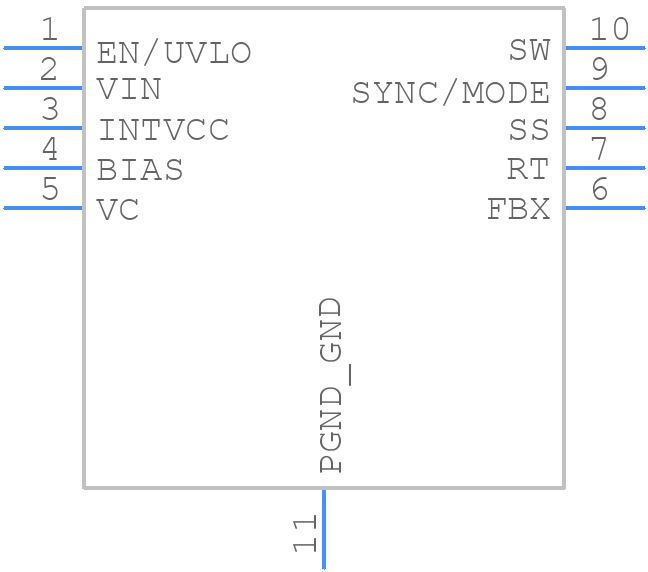

LT8362IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8362IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT8362IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT8362IDD#TRPBF Details

  • Manufacturer Part Number:

    LT8362IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO BE CONFIGURED AS SEPIC/INVERTING CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT8362IDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT8362IDD can handle is 80V, but it's recommended to operate it within the specified input voltage range of 3.5V to 60V for optimal performance and reliability.
  • To optimize the layout of the LT8362IDD, it's recommended to follow the guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces.
  • The recommended input capacitor value for the LT8362IDD is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize the input voltage ripple and ensure stable operation.
  • The LT8362IDD is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. It's also recommended to follow the thermal design guidelines provided in the datasheet to ensure proper heat dissipation.
  • To troubleshoot issues with the LT8362IDD, it's recommended to follow a systematic approach, including checking the input voltage, output voltage, and output current, as well as verifying the layout and component values. It's also recommended to consult the datasheet and application notes for troubleshooting guidelines and tips.
