LT8362IMSE#WTRPBF footprint, schematic symbol and 3D model by Analog Devices

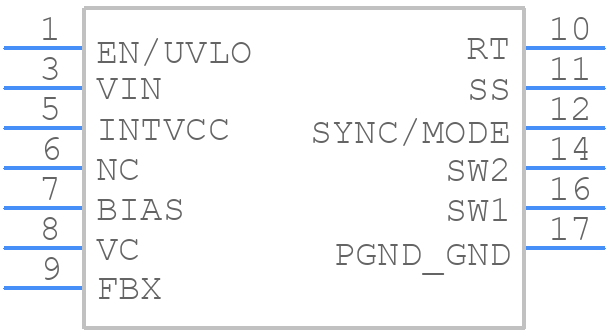

Symbol

click to zoom

PCB Footprints

LT8362IMSE#WTRPBF - Analog Devices PCB footprint - Other - Other - MSE Package Variation: MSE16 (12) 16-Lead Plastic MSOP with 4 Pins Removed Exposed Die Pad (Reference LT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT8362IMSE#WTRPBF
Part Number LT8362IMSE#WTRPBF
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MSE Package Variation: MSE16 (12) 16-Lead Plastic MSOP with 4 Pins Removed Exposed Die Pad (Reference LT
Released Date Dec 28, 2024
Last Modified Date Dec 3, 2025 8:29 PM UTC
Pinout / Pin List Click Here (Member Only)

LT8362IMSE#WTRPBF Details

Manufacturer Part Number:
LT8362IMSE#WTRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP -16/12
Pin Count:
12
Manufacturer Package Code:
05-08-1871
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
CAN ALSO BE CONFIGURED AS SEPIC/INVERTING CONVERTER
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
60 V
Input Voltage-Min:
2.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G12
Length:
4.039 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP12/16,.19,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
2150 kHz
Technology:
BIPOLAR
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LT8362IMSE#WTRPBF Frequently Asked Questions (FAQs)

A good PCB layout is crucial for the LT8362's performance. Analog Devices recommends a 4-layer board with a solid ground plane, and to keep the input and output capacitors close to the IC. A demo board is available from Analog Devices, which can serve as a reference design.
The input capacitor should have a low ESR and be able to handle the input ripple current. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should be chosen based on the output voltage and current requirements. A 10uF to 47uF ceramic capacitor is recommended. X5R or X7R dielectrics are suitable for most applications.
The LT8362 is rated for operation up to 125°C junction temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 85°C to ensure a safe margin.
To ensure stability, follow the recommended component values and PCB layout. Also, make sure the input and output capacitors are properly decoupled, and the feedback network is properly compensated. A stability analysis can be performed using the LTspice simulation tool.
The recommended input voltage range for the LT8362 is 2.9V to 15V. Operation outside this range may affect the device's performance and reliability.
