LT8390IUFD#TRPBF - Analog Devices

Description: 60V Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Download LT8390IUFD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

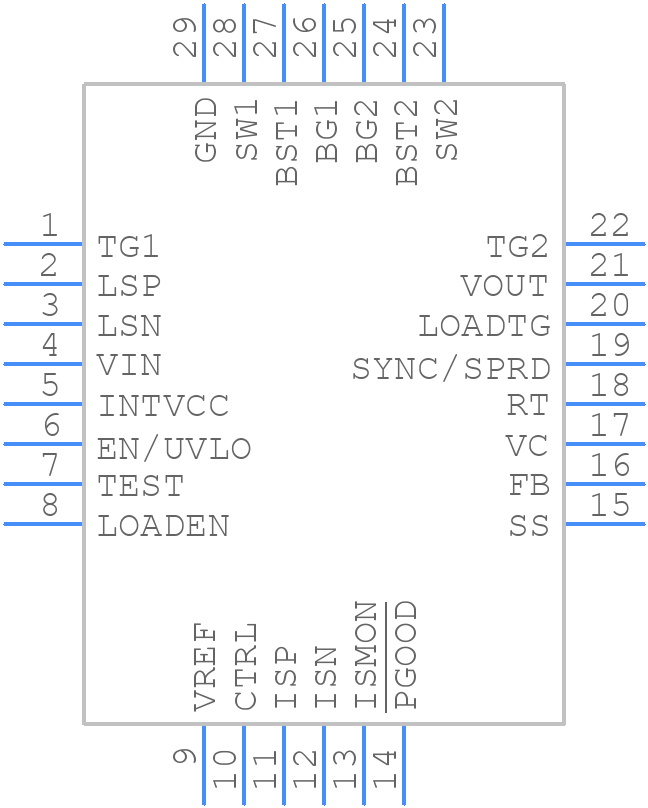

Symbol
LT8390IUFD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8390IUFD#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LT8390IUFD#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LT8390IUFD#TRPBF Details

  • Manufacturer Part Number:

    LT8390IUFD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.12X16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    630 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LT8390IUFD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8390 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance is recommended.
  • The maximum ambient temperature range for the LT8390 is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT8390 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and design guidelines to ensure optimal performance and reliability.
  • To troubleshoot issues with the LT8390, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are of high quality and have low ESR. Check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions.
