LT8602ELXE#PBF - Analog Devices

Description: 42V Quad Monolithic Synchronous Step-Down Regulator

Download LT8602ELXE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

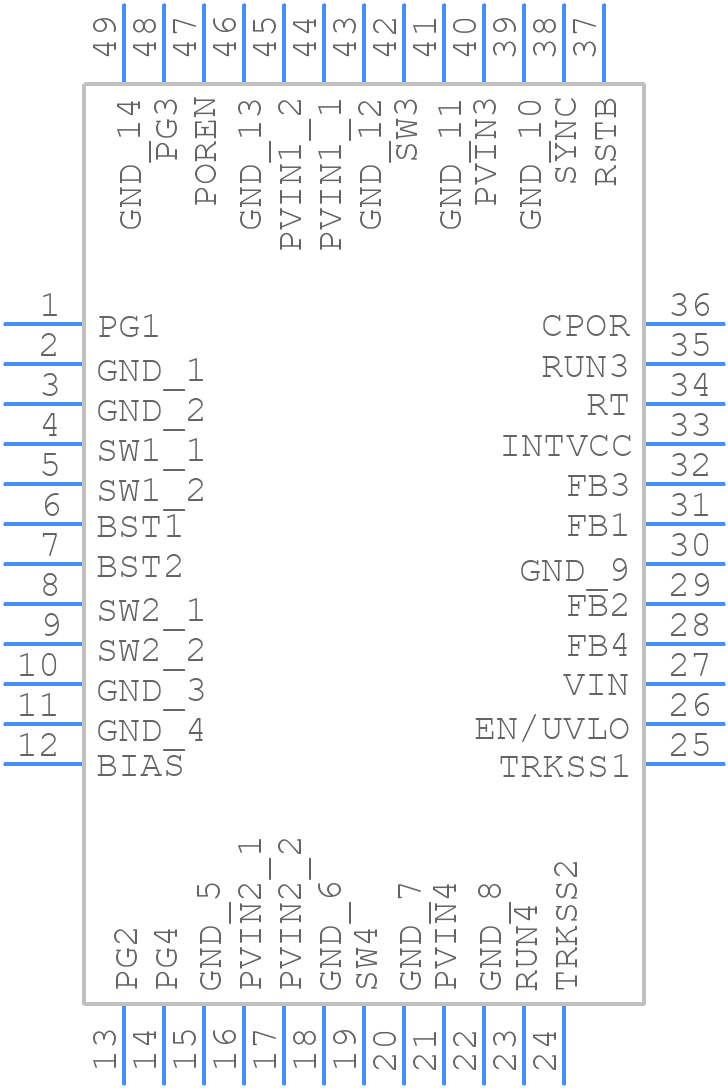

Symbol
LT8602ELXE#PBF - Analog Devices - PCB symbol
click to zoom

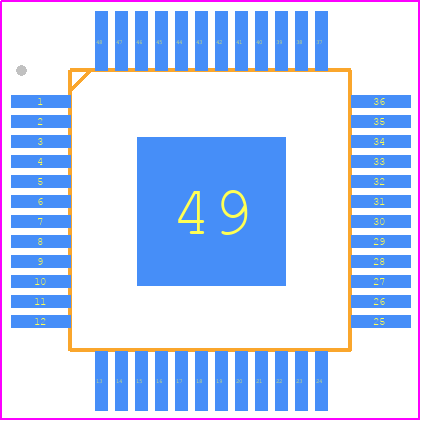

PCB Footprints
LT8602ELXE#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom
3D Models
LT8602ELXE#PBF - Analog Devices - 3D model - Quad Flat Packages - LXE Package 48-Lead Plastic Exposed Pad LQFP (7mm × 7mm)
click to zoom

LT8602ELXE#PBF Details

  • Manufacturer Part Number:

    LT8602ELXE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1832

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LT8602ELXE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8602ELXE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device's operating frequency should be within the recommended range, and the input voltage should be within the specified range.
  • The LT8602ELXE can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • Yes, the LT8602ELXE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LT8602ELXE, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check the device's operating frequency and ensure that it's within the recommended range. Also, verify that the compensation network and component values are correct. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
