LT8604IDDBM#TRMPBF - Analog Devices

Description: Switching Voltage Regulators High Efficiency 42V/100mA Synchronous Bu

Download LT8604IDDBM#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

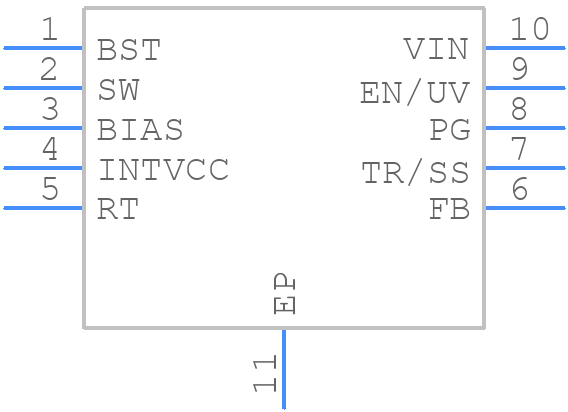

LT8604IDDBM#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8604IDDBM#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDBM Package 10-Lead Plastic SIDE WETTABLE DFN (3mm × 2mm)
click to zoom
3D Models
LT8604IDDBM#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DDBM Package 10-Lead Plastic SIDE WETTABLE DFN (3mm × 2mm)
click to zoom

LT8604IDDBM#TRMPBF Details

  • Manufacturer Part Number:

    LT8604IDDBM#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1655

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.12 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT8604IDDBM#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8604 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the output capacitor has a low ESR (Equivalent Series Resistance) and that the input capacitor is properly sized. Also, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
  • The LT8604 can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's recommended to use thermal management techniques such as heat sinks or thermal pads to keep the device temperature within the recommended range.
  • Yes, the LT8604 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
  • To troubleshoot issues with the LT8604, start by checking the input voltage, output voltage, and current. Verify that the device is properly powered and that the input and output capacitors are properly sized. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
