LT8606BHDC#TRMPBF - Analog Devices

Description: Switching Voltage Regulators 42V, 350mA Synchronous Step-Down Regulator with 2.5uA Quiescent Current

Download LT8606BHDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

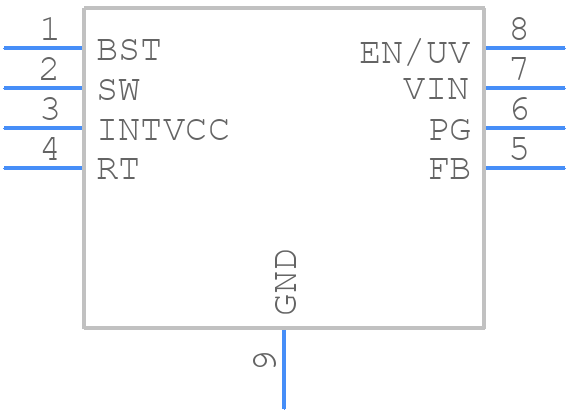

Symbol
LT8606BHDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8606BHDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)_2021
click to zoom
3D Models
LT8606BHDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)_2021
click to zoom

LT8606BHDC#TRMPBF Details

  • Manufacturer Part Number:

    LT8606BHDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1939

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LT8606BHDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8606BHDC involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor in parallel with the output capacitor to improve stability. Also, avoid using long input traces and keep the input capacitor close to the device.
  • The LT8606BHDC is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature remains within the specified range to ensure reliable operation.
  • The LT8606BHDC is rated for a maximum input voltage of 42V, but it can be used in high-voltage applications with proper design considerations. It's essential to ensure that the device's input voltage remains within the specified range and to use proper voltage clamping and protection circuits to prevent overvoltage conditions.
  • To troubleshoot issues with the LT8606BHDC, start by verifying the input voltage and current, and checking the output voltage and current. Use an oscilloscope to check for oscillations or noise on the output, and ensure that the device is properly soldered and connected. Also, check the PCB layout and component values to ensure they meet the recommended specifications.
