LT8608SEV#TRMPBF - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 0.77V 1 Output 1.5A 12-VFQFN Exposed Pad , 200kHz ~ 2.2MHz , -40°C ~ 125°C (TJ)

Download LT8608SEV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

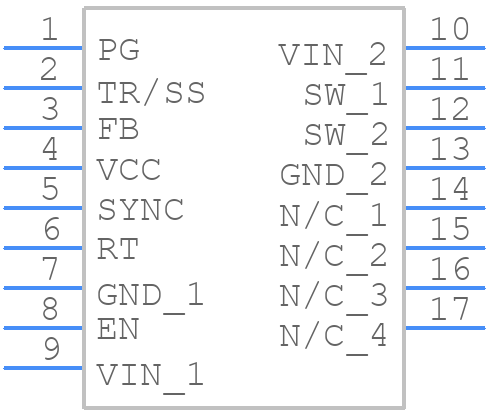

LT8608SEV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8608SEV#TRMPBF - Analog Devices PCB footprint - Other - Other - LQFN Package 12-Lead (2mm × 3mm × 0.74mm)
click to zoom
3D Models
LT8608SEV#TRMPBF - Analog Devices - 3D model - Other - LQFN Package 12-Lead (2mm × 3mm × 0.74mm)
click to zoom

LT8608SEV#TRMPBF Details

  • Manufacturer Part Number:

    LT8608SEV#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Additional Feature:

    PWM CONTOL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SILENT SWITCHER

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-XQCC-N12

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2100 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LT8608SEV#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT8608SEV is 42V, but it's recommended to keep it below 40V for reliable operation.
  • To minimize EMI, keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-frequency nodes (e.g., SW node) away from the input and output nodes. Also, use a shielded inductor and orient it to minimize radiation.
  • The recommended inductor value is 2.2μH to 4.7μH, and it's recommended to use a shielded inductor with a high saturation current rating (e.g., > 5A) to minimize core losses and ensure reliable operation.
  • Select an output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A ceramic capacitor with an X5R or X7R dielectric is recommended. The output capacitor value should be at least 10μF to ensure stable operation.
  • The maximum ambient temperature that the LT8608SEV can operate in is 125°C, but the junction temperature should be kept below 150°C to ensure reliable operation.
