LT8608SIV#TRMPBF - Analog Devices

Description: Switching Voltage Regulators 42V, 1.5A Synchr step down with 3uA iq

Download LT8608SIV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

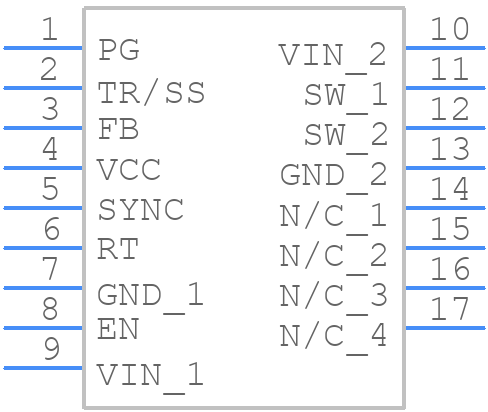

Symbol
LT8608SIV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8608SIV#TRMPBF - Analog Devices PCB footprint - Other - Other - LT8608SIV#TRMPBF-2
click to zoom
3D Models
LT8608SIV#TRMPBF - Analog Devices - 3D model - Other - LT8608SIV#TRMPBF-2
click to zoom

LT8608SIV#TRMPBF Details

  • Manufacturer Part Number:

    LT8608SIV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1565

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PWM CONTOL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SILENT SWITCHER

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-XQCC-N12

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2100 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LT8608SIV#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT8608SIV is 42V, but it's recommended to keep it below 36V for optimal performance and reliability.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive nodes.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. X5R or X7R dielectric types are suitable for most applications.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. For the inductor type, a shielded inductor with a low DCR (direct current resistance) is recommended.
  • The maximum ambient temperature range for the LT8608SIV is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a range of -20°C to 85°C for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8608SIV#TRMPBF Overview

Use the download button to access the LT8608SIV#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT860, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
