LT8609AIMSE16#TRPBF - Analog Devices

Description: Switching Voltage Regulators 42V, 2A/3A Peak Sync Buck Reg w/ 2.5uA

Download LT8609AIMSE16#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

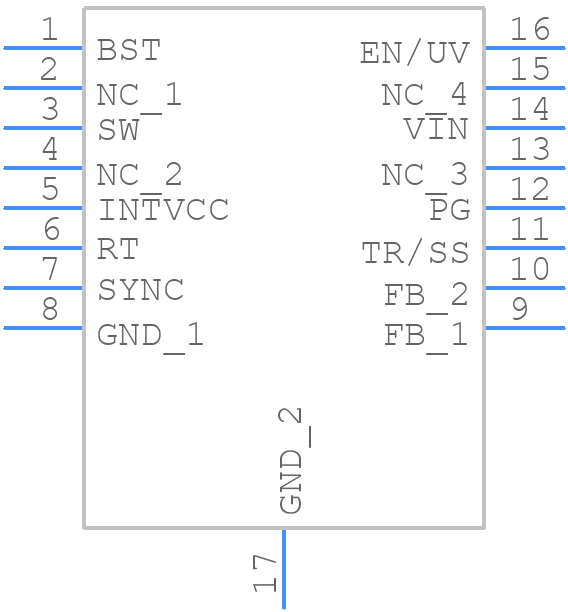

LT8609AIMSE16#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8609AIMSE16#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP Exposed Die Pad
click to zoom
3D Models
LT8609AIMSE16#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP Exposed Die Pad
click to zoom

LT8609AIMSE16#TRPBF Details

  • Manufacturer Part Number:

    LT8609AIMSE16#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    42 V

  • Output Voltage-Min:

    0.782 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2075 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8609AIMSE16#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8609 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the feedback resistors are properly selected. Additionally, a minimum ESR of 0.05Ω is recommended for the output capacitor.
  • The LT8609 can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • The LT8609 is rated for a maximum input voltage of 42V, and it's not recommended to use it in applications with input voltages exceeding this rating. If you need a high-voltage converter, consider using a different device or consulting with an Analog Devices application engineer.
  • Start by checking the input and output voltages, and ensure that the feedback loop is properly connected. Verify that the component values meet the recommended specifications, and check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices support for further assistance.
