LT8609AJMSE16#PBF - Analog Devices

Description: Switching Voltage Regulators 42V, 2A/3A Peak Sync Buck Reg w/ 2.5uA

Download LT8609AJMSE16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

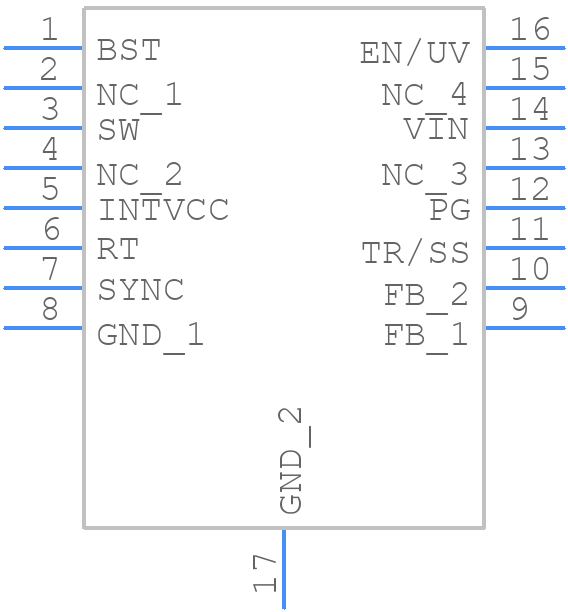

Symbol
LT8609AJMSE16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8609AJMSE16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP, Exposed Die Pad_5
click to zoom
3D Models
LT8609AJMSE16#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP, Exposed Die Pad_5
click to zoom

LT8609AJMSE16#PBF Details

  • Manufacturer Part Number:

    LT8609AJMSE16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    42 V

  • Output Voltage-Min:

    0.782 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2075 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8609AJMSE16#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8609AJMSE16 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to check the device's stability by analyzing the loop gain and phase margin using tools like SPICE or a network analyzer.
  • The maximum ambient temperature range for the LT8609AJMSE16 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to derate the device's specifications accordingly.
  • Yes, the LT8609AJMSE16 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
  • To troubleshoot issues with the LT8609AJMSE16, start by checking the device's input and output voltages, as well as the current consumption. Use an oscilloscope to check for oscillations or other anomalies. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the device's datasheet and application notes, or contact Analog Devices' technical support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8609AJMSE16#PBF Overview

Use the download button to access the LT8609AJMSE16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT860, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
