LT8610AHMSE-5#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT8610AHMSE-5#PBF - DC / DC CONV, SYNC BUCK, 2MHZ, MSOP-16

Download LT8610AHMSE-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

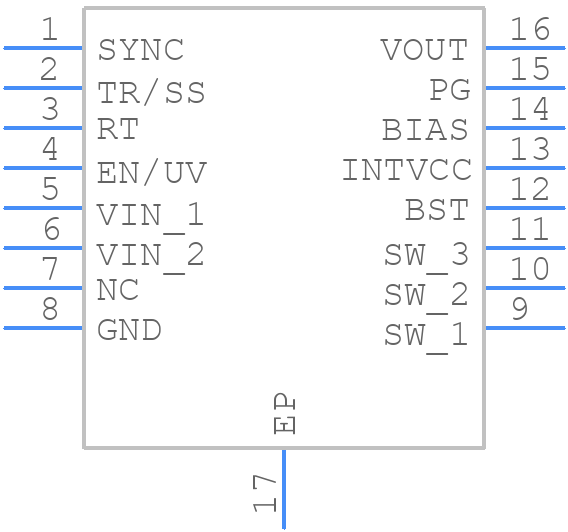

Symbol
LT8610AHMSE-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8610AHMSE-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT8610AHMSE-5#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT8610AHMSE-5#PBF Details

  • Manufacturer Part Number:

    LT8610AHMSE-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT8610AHMSE-5#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • To ensure stability, follow the datasheet's guidelines for output capacitor selection, input capacitor selection, and feedback resistor selection. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a stable input voltage source.
  • The maximum ambient temperature range for the LT8610AHMSE-5#PBF is -40°C to 125°C, but the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the temperature derating curve provided in the datasheet.
  • Yes, the LT8610AHMSE-5#PBF is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's recommended to consult with Analog Devices' application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT8610AHMSE-5#PBF, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper PCB layout, decoupling, and bypassing. Use an oscilloscope to measure the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8610AHMSE-5#PBF Overview

Use the download button to access the LT8610AHMSE-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT861, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
