LT8624SAV#PBF footprint, schematic symbol and 3D model by Analog Devices

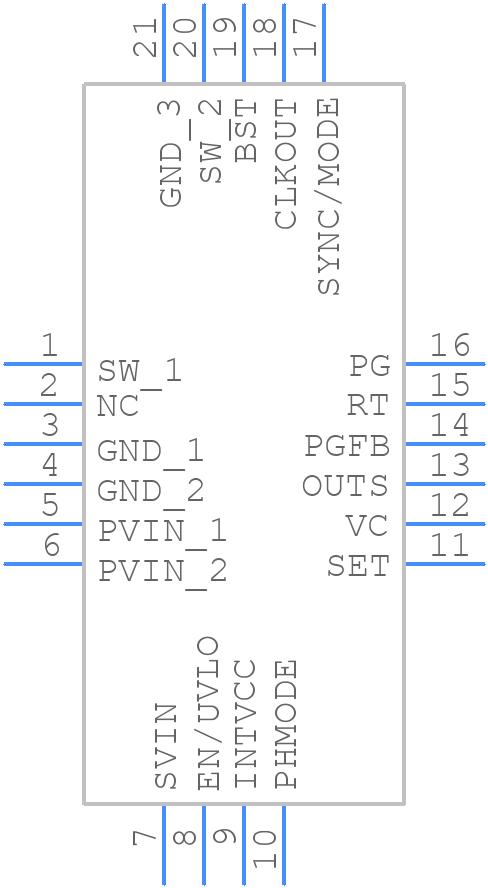

Symbol

click to zoom

PCB Footprints

LT8624SAV#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20LQFN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT8624SAV#PBF
Part Number LT8624SAV#PBF
Manufacturer Analog Devices
Pin Count 21
Part Category Diode ESD (Uni-directional)
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 20LQFN
Last Modified Date Apr 13, 2026 7:35 AM UTC
Pinout / Pin List Click Here (Member Only)

LT8624SAV#PBF Details

Manufacturer Part Number:
LT8624SAV#PBF
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LGA/CASON/CH ARRY SO NO LD
Pin Count:
20
Manufacturer Package Code:
LGA/CASON/CH ARRY SO NO LD
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2023-02-03
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE SKIP MODE
Input Voltage-Max:
18 V
Input Voltage-Min:
2.7 V
Input Voltage-Nom:
5.5 V
JESD-30 Code:
R-XQCC-N20
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
17.5 V
Package Body Material:
UNSPECIFIED
Package Code:
HQCCN
Package Equivalence Code:
LCC20,.12X.16,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG
Seated Height-Max:
1.05 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
6000 kHz
Technology:
BIPOLAR
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm

LT8624SAV#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT8624SAV#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from the analog signals.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be designed to minimize noise and parasitic inductance.
The LT8624SAV#PBF can operate in ambient temperatures up to 125°C, but the device's performance and reliability may be affected at higher temperatures. It's recommended to derate the device's performance and to ensure proper thermal management in high-temperature applications.
Yes, the LT8624SAV#PBF is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device's reliability and performance in these applications.
To troubleshoot issues with the LT8624SAV#PBF, it's recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Check the device's input and output voltages, as well as the compensation network and component values. Use oscilloscopes and other measurement tools to identify any anomalies or oscillations, and consult with Analog Devices' technical support team if necessary.
