LT8642EV-1#PBF - Analog Devices

Description: 18V, 10A Synchronous Step-Down Silent Switcher

Download LT8642EV-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

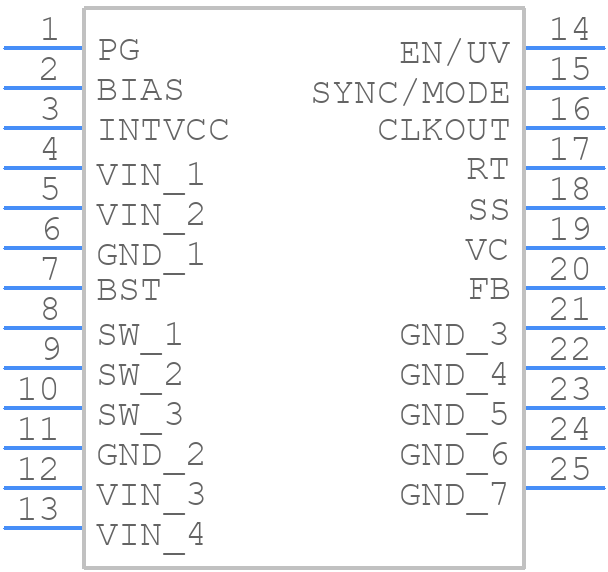

LT8642EV-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8642EV-1#PBF - Analog Devices PCB footprint - Other - Other - LQFN PACKAGE 20-LEAD (3mm × 4mm × 0.95mm)
click to zoom
3D Models
LT8642EV-1#PBF - Analog Devices - 3D model - Other - LQFN PACKAGE 20-LEAD (3mm × 4mm × 0.95mm)
click to zoom

LT8642EV-1#PBF Details

  • Manufacturer Part Number:

    LT8642EV-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1689

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-XQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT8642EV-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8642EV-1#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the feedback network is properly compensated.
  • The maximum ambient temperature range for the LT8642EV-1#PBF is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT8642EV-1#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high performance and reliability.
  • To troubleshoot issues with the LT8642EV-1#PBF, start by checking the input and output voltages, and ensuring that the device is properly powered. Check the feedback network and compensation components, and verify that the PCB layout meets the recommended guidelines.
