LT8646SEV#TRPBF - Analog Devices

Description: 65V, 8A Synchronous Step-Down Silent Switcher 2 with 2.5μA Quiescent Current

Download LT8646SEV#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

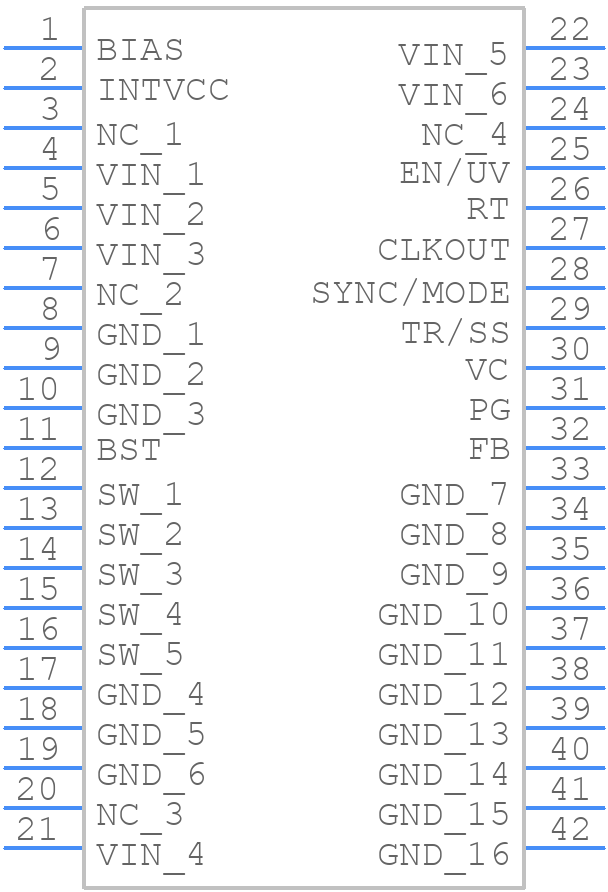

LT8646SEV#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8646SEV#TRPBF - Analog Devices PCB footprint - Other - Other - LT8646SEV#TRPBF-3
click to zoom
3D Models
LT8646SEV#TRPBF - Analog Devices - 3D model - Other - LT8646SEV#TRPBF-3
click to zoom

LT8646SEV#TRPBF Details

  • Manufacturer Part Number:

    LT8646SEV#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • Pin Count:

    32

  • Manufacturer Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-01-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.4 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-XQCC-N32

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.16X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.03 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT8646SEV#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT8646SEV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors meet the recommended specifications, and that the device is operated within its recommended operating conditions.
  • The LT8646SEV can operate in ambient temperatures up to 125°C, but the device's junction temperature must be kept below 150°C to ensure reliable operation.
  • Yes, the LT8646SEV is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
  • To troubleshoot issues, start by checking the input and output voltages, and ensuring that the device is operated within its recommended operating conditions. Check for any signs of overheating, and verify that the PCB layout meets the recommended guidelines. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
