LT8708ELWE-1#PBF - Analog Devices

Description: 80V Synchronous 4-Switch Buck-Boost DC/DC Slave Controller for LT8708 Multiphase System

Download LT8708ELWE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT8708ELWE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

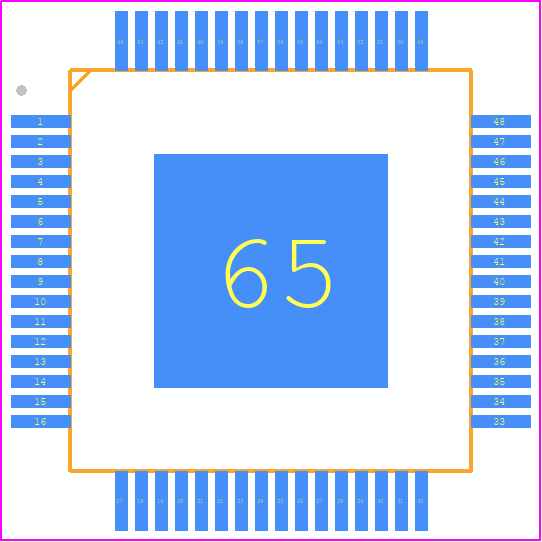

LT8708ELWE-1#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Lead LQFP (10 mm × 10 mm)
click to zoom
3D Models
LT8708ELWE-1#PBF - Analog Devices - 3D model - Quad Flat Packages - 64-Lead LQFP (10 mm × 10 mm)
click to zoom

LT8708ELWE-1#PBF Details

  • Manufacturer Part Number:

    LT8708ELWE-1#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    125 °C

  • Output Voltage-Max:

    80 V

  • Output Voltage-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

LT8708ELWE-1#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Analog Devices provides a list of recommended inductors in the datasheet, but it's also recommended to consult with inductor manufacturers and follow their selection guides.
  • The maximum ambient temperature that the LT8708ELWE-1#PBF can operate in is 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • Proper thermal management is critical for the LT8708ELWE-1#PBF. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. The datasheet provides thermal resistance and junction-to-case thermal resistance values to help with thermal management.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, and the value depends on the specific application requirements. A general guideline is to use a capacitor with a value of 10uF to 22uF, but it's recommended to consult with capacitor manufacturers and follow their selection guides.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8708ELWE-1#PBF Overview

Use the download button to access the LT8708ELWE-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT870, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
