LT8711EFE#PBF - Analog Devices

Description: Micropower Synchronous Multitopology Controller with 42V Input Capability

Download LT8711EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

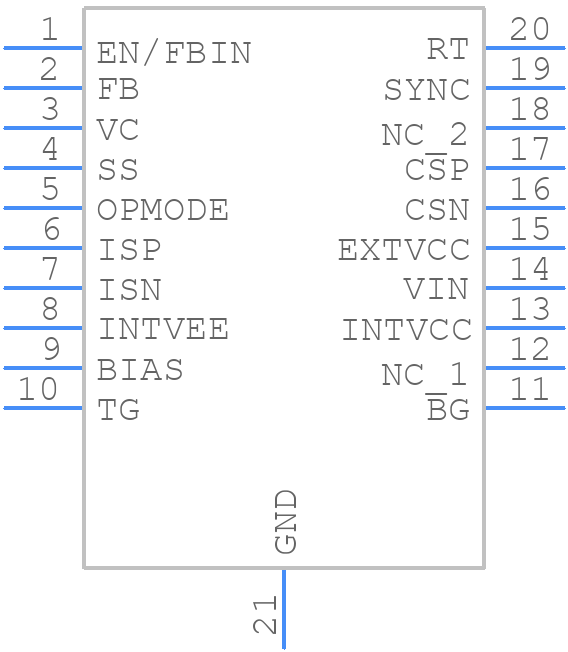

Symbol
LT8711EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT8711EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm
click to zoom
3D Models
LT8711EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm
click to zoom

LT8711EFE#PBF Details

  • Manufacturer Part Number:

    LT8711EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    825 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT8711EFE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Ensure that the output voltage is within the recommended range, and the input voltage is above the minimum specified voltage. Also, use the recommended output capacitor values and ensure that the feedback resistors are within the recommended range.
  • The maximum ambient temperature range for the LT8711EFE is -40°C to 125°C. However, the junction temperature should not exceed 150°C.
  • Yes, the LT8711EFE is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • Start by checking the input voltage, output voltage, and current. Verify that the feedback resistors are correct and that the output capacitor values are within the recommended range. Also, check for any signs of overheating or physical damage to the IC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT8711EFE#PBF Overview

Use the download button to access the LT8711EFE#PBF schematic symbol, PCB footprint, and 3D model.
