The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring a solid ground plane underneath the device. Additionally, it's recommended to use thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
The maximum allowable voltage for the LTA-1000P is 1.5 times the rated voltage, but it's recommended to operate the device within the specified voltage range to ensure reliable operation and prevent damage.
To handle ESD protection for the LTA-1000P, it's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment. Additionally, consider using ESD protection devices, such as TVS diodes, in the circuit design.
The recommended soldering profile for the LTA-1000P involves using a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTA-1000P Overview

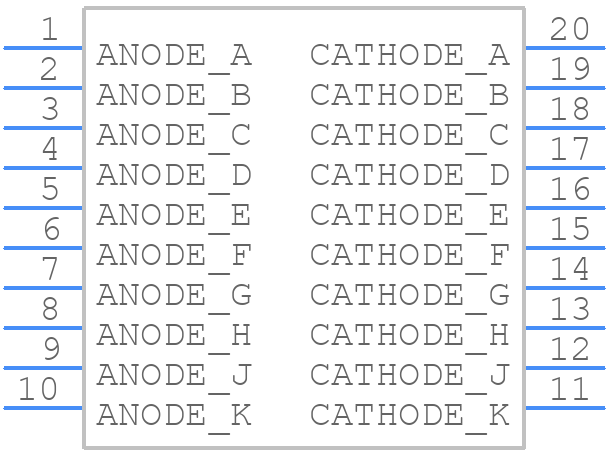

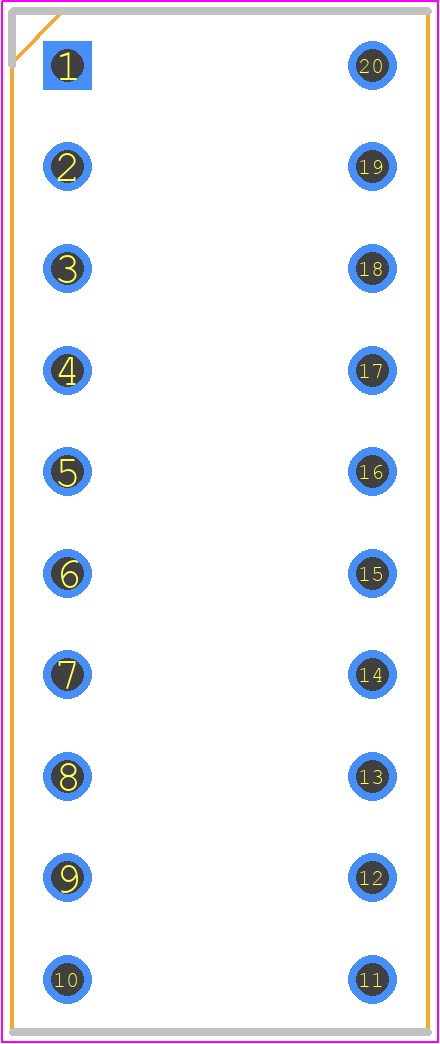

Use the download button to access the LTA-1000P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTA-1,
or try a keyword search, such as Visible LEDs
