LTC-2721WC - Lite-On

Description: LED Displays & Accessories Red 3 Dig 0.28" Ht 638nm 600ucd

Download LTC-2721WC Model

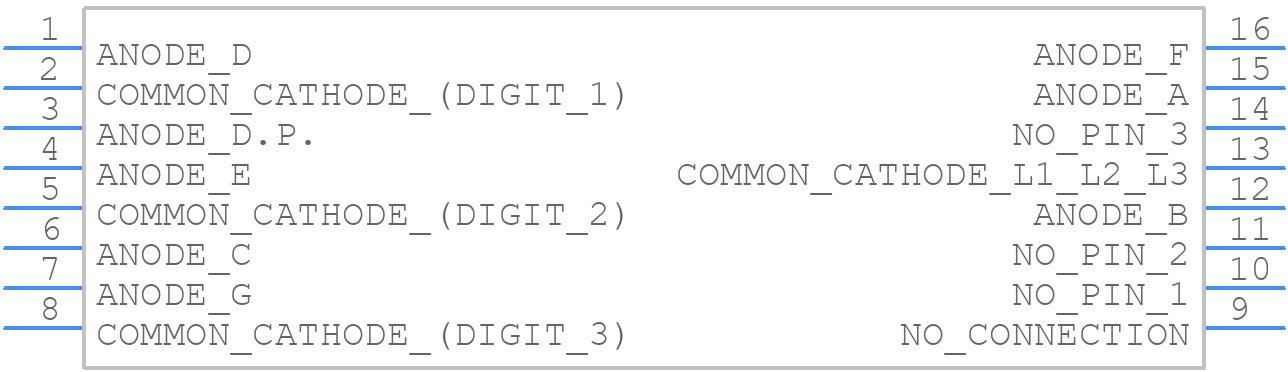

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

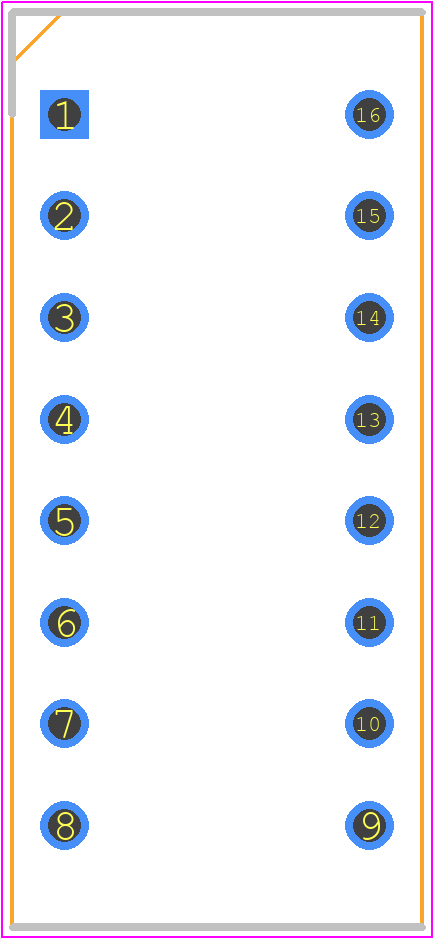

LTC-2721WC - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTC-2721WC
click to zoom
3D Models
LTC-2721WC - Lite-On  - 3D model - Dual-In-Line Sockets - LTC-2721WC
click to zoom

LTC-2721WC Details

  • Manufacturer Part Number:

    LTC-2721WC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

LTC-2721WC Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC-2721WC involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
  • To optimize the compensation network, start by selecting the recommended values for RCOMP and CCOMP from the datasheet. Then, adjust these values based on the specific application requirements, such as output voltage and load current. It's also important to consider the effects of component tolerances and temperature variations.
  • The maximum allowed input voltage for the LTC-2721WC is 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent damage to the IC.
  • To ensure the LTC-2721WC operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is below the maximum rating, and the junction temperature is below 125°C.
  • The EN (enable) pin on the LTC-2721WC is used to enable or disable the converter. When the EN pin is high, the converter is enabled, and when it's low, the converter is disabled. This pin can be used to implement power sequencing or to shut down the converter during idle modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC-2721WC Overview

Use the download button to access the LTC-2721WC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC-2, or try a keyword search, such as LED Displays
