LTC-2723WC - Lite-On

Description: LED Displays & Accessories 4 Digit, Red Low Current

Download LTC-2723WC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

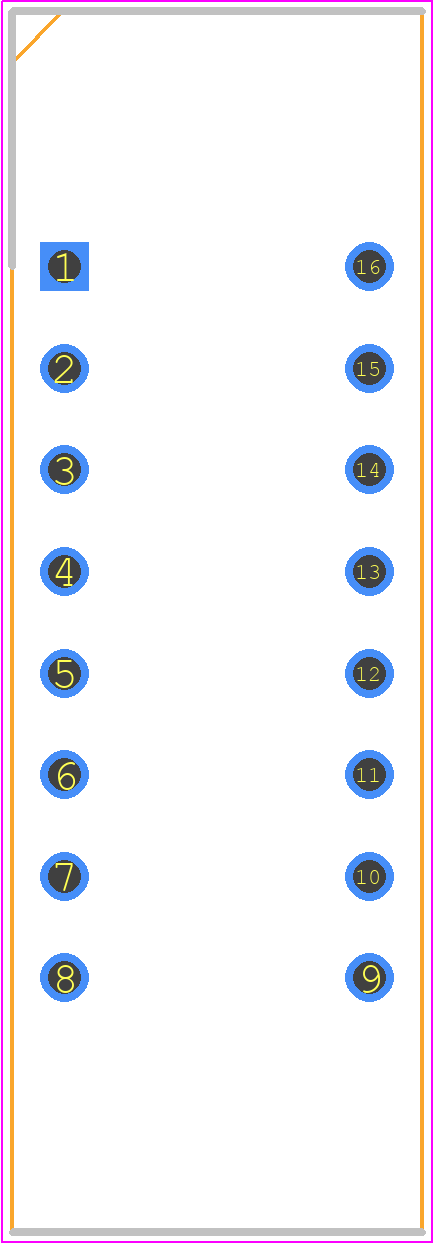

LTC-2723WC - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTC-2723WC
click to zoom

LTC-2723WC Details

  • Manufacturer Part Number:

    LTC-2723WC

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    RED

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY
