Part Image

LTC-4624JR - Lite-On

Description: LED Displays & Accessories 3 Digit, Red Low Current

Download LTC-4624JR Model

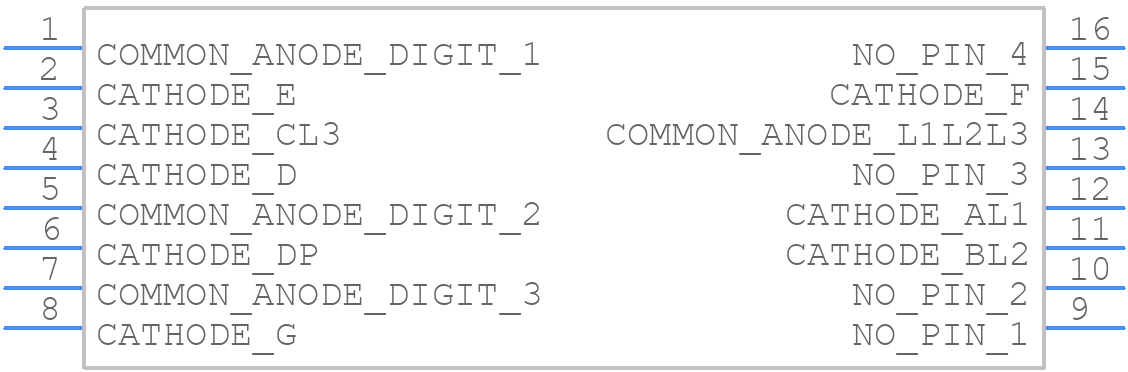

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

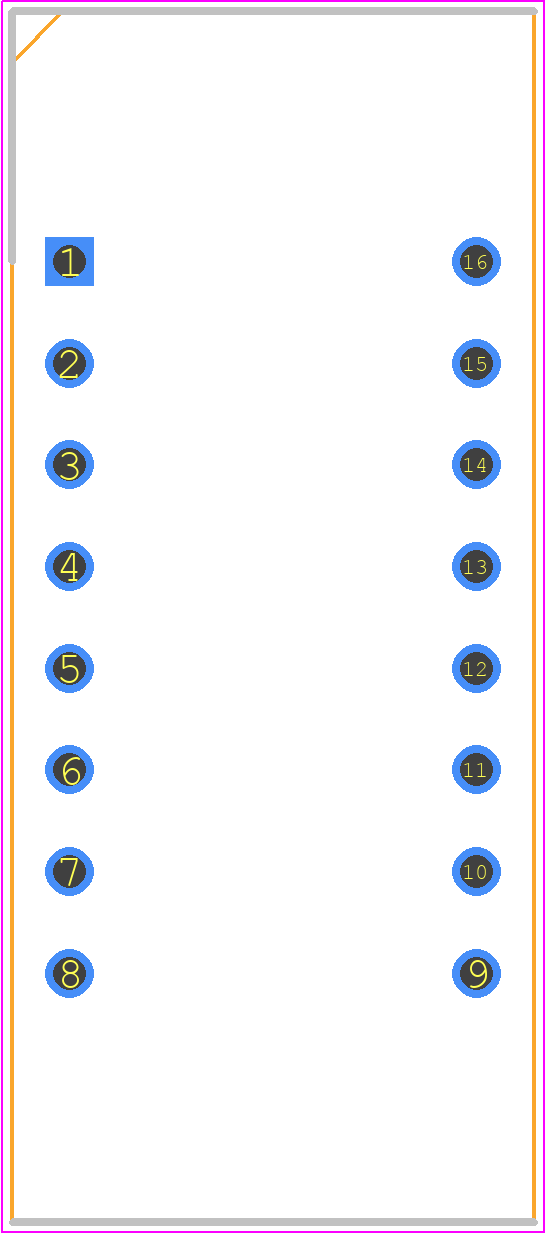

LTC-4624JR - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 16-DIP
click to zoom
3D Models
LTC-4624JR - Lite-On  - 3D model - Dual-In-Line Sockets - 16-DIP
click to zoom

LTC-4624JR Details

  • Manufacturer Part Number:

    LTC-4624JR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    639 nm

LTC-4624JR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and add a soft-start circuit to limit the inrush current during start-up. Also, add a voltage supervisor to ensure the converter shuts down cleanly during power-down.
  • The maximum allowed capacitance is dependent on the specific application and output voltage. As a general rule, keep the output capacitance below 10uF to avoid stability issues.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and add a common-mode choke to reduce EMI. Also, ensure good PCB layout practices, such as keeping the power stage away from the control circuitry.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF, depending on the input voltage and ripple requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC-4624JR Overview

Use the download button to access the LTC-4624JR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC-4, or try a keyword search, such as LED Displays
