LTC-571P - Lite-On

Description: LED Displays & Accessories 3 Digit, Red

Download LTC-571P Model

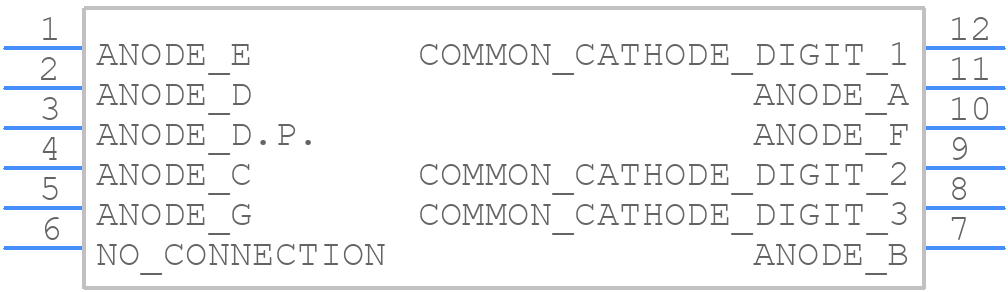

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

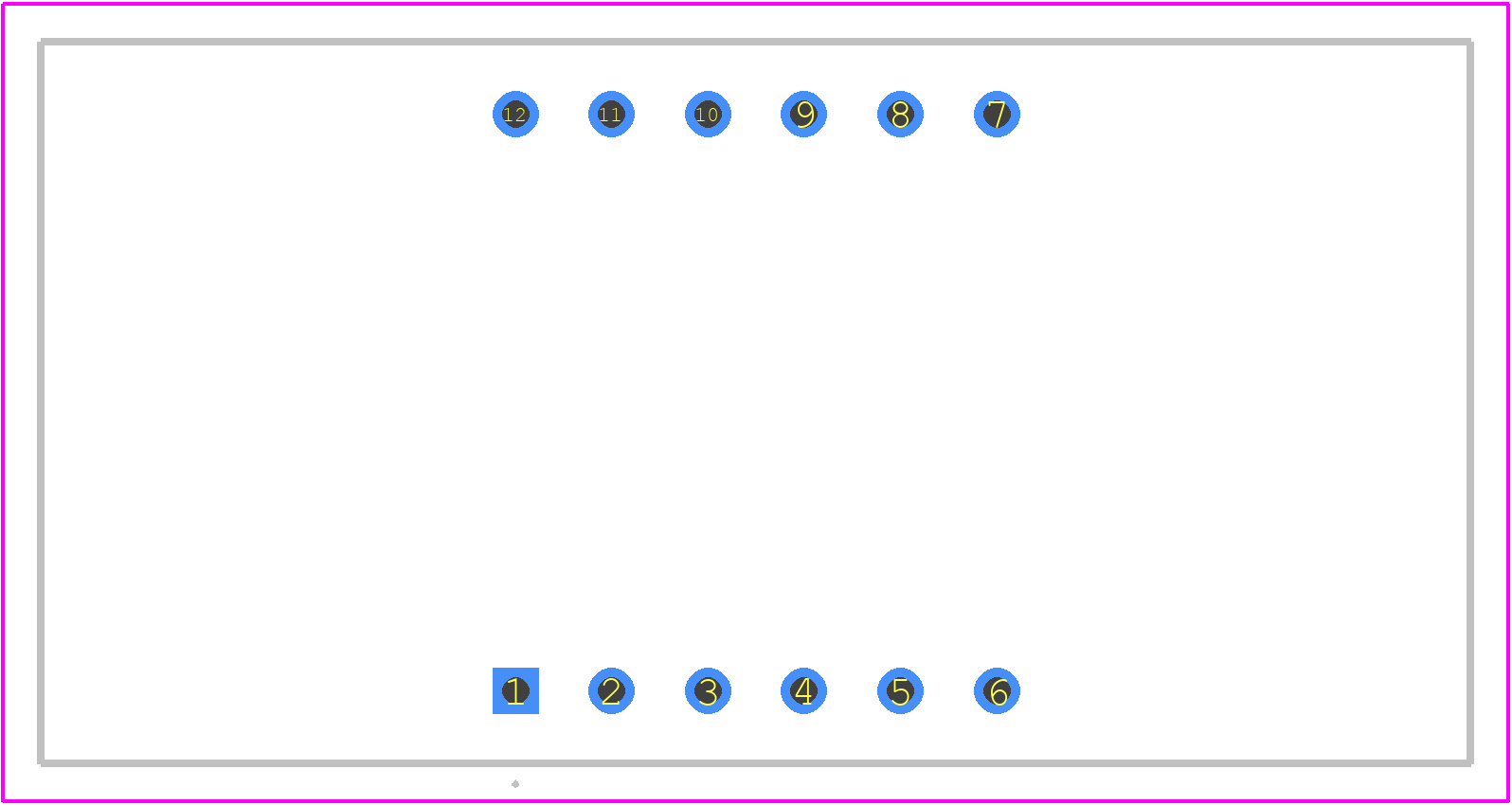

LTC-571P - Lite-On PCB footprint - Other - Other - LTC-571P-2
click to zoom
3D Models
LTC-571P - Lite-On  - 3D model - Other - LTC-571P-2
click to zoom

LTC-571P Details

  • Manufacturer Part Number:

    LTC-571P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.8 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    697 nm

LTC-571P Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the thermal pad is also recommended.
  • To ensure reliable operation at high temperatures, it is essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and PCB layout. Additionally, the device should be operated within the specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • The LTC-571P is an ESD-sensitive device and should be handled with care. It is recommended to store the device in an anti-static bag or wrap, and to handle it with anti-static wrist straps or mats. The device should also be stored in a dry, cool place, away from direct sunlight and moisture.
  • The LTC-571P is not designed for use in high-humidity environments. It is recommended to use the device in environments with a relative humidity of less than 60%. If the device must be used in a high-humidity environment, it is essential to take precautions such as conformal coating, potting, or using a moisture-resistant package.
  • The recommended soldering conditions for the LTC-571P include a peak temperature of 260°C, a soldering time of less than 10 seconds, and a temperature ramp rate of 3°C/second. It is also recommended to use a solder with a melting point of 217°C or higher.
