LTC1092ACN8#PBF - Analog Devices

Description: ■ Programmable Features – Unipolar/Bipolar Conversions – Differential/Single-Ended Multiplexer Configurations ■ Sample-and-Holds ■ Single Supply 5V, 10V or ±5V Operation ■ Direct 3- or 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel I/O Ports ■ Analog Inputs Common Mode to Supply Rails ■ Resolution: 10 Bits ■ Total Unadjusted Error (A Grade): ±1LSB Over Temp ■ Fast Conversion Time: 20µs

Download LTC1092ACN8#PBF Model

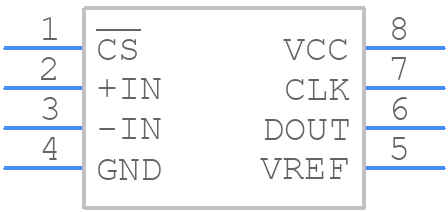

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC1092ACN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP (Narrow .300 Inch)_2024
click to zoom
3D Models
LTC1092ACN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - 8-Lead PDIP (Narrow .300 Inch)_2024
click to zoom

LTC1092ACN8#PBF Details

  • Manufacturer Part Number:

    LTC1092ACN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    20 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1092ACN8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1092ACN8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To optimize the performance of the LTC1092ACN8, it's essential to consider the specific requirements of your application, such as the input signal frequency, amplitude, and impedance. You should also ensure that the device is operated within its recommended operating conditions, and that the PCB layout is optimized for low noise and distortion.
  • Potential sources of noise and distortion in the LTC1092ACN8 include thermal noise, flicker noise, and electromagnetic interference (EMI). To mitigate these effects, you can use techniques such as shielding, filtering, and grounding, as well as ensuring that the device is operated within its recommended operating conditions.
  • To troubleshoot issues with the LTC1092ACN8, start by verifying that the device is properly powered and that the input signals are within the recommended range. Check the PCB layout for any potential sources of noise or distortion, and ensure that the device is operated within its recommended operating conditions. You can also use tools such as oscilloscopes and signal analyzers to help identify the source of the issue.
  • Yes, the LTC1092ACN8 has a maximum junction temperature of 150°C, and it's essential to ensure that the device is operated within its recommended thermal conditions. You should also consider the thermal resistance of the package and the PCB, and ensure that the device is properly heat-sinked if necessary.
