LTC1094ACN#PBF - Analog Devices

Description: 1-, 2-, 6- and 8-Channel, 10-Bit Serial I/O Data Acquisition Systems

Download LTC1094ACN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

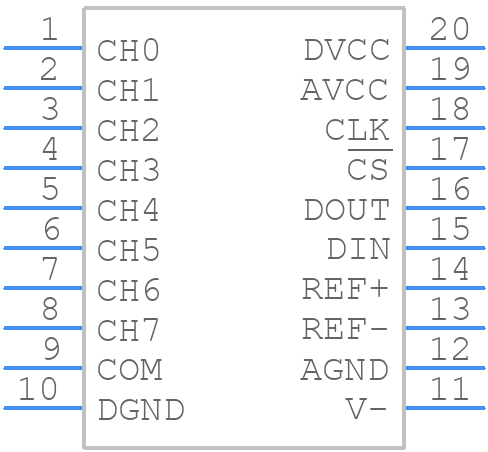

Symbol
LTC1094ACN#PBF - Analog Devices - PCB symbol
click to zoom

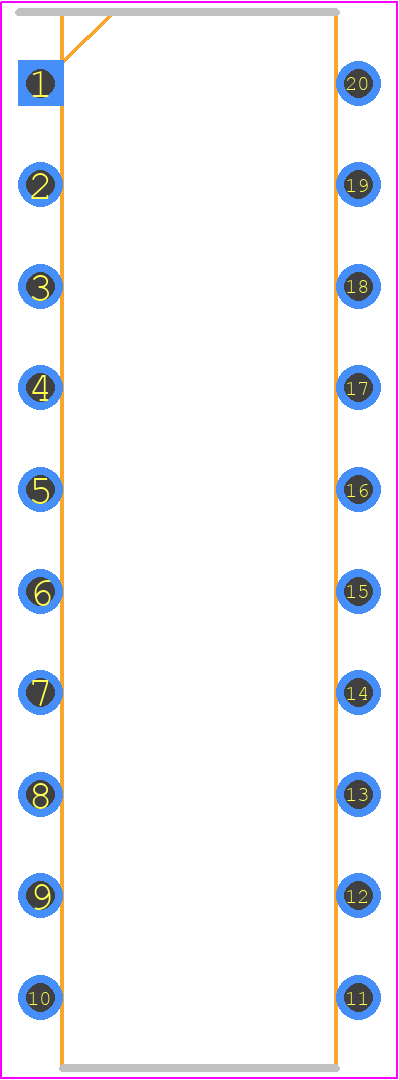

PCB Footprints
LTC1094ACN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom
3D Models
LTC1094ACN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 20-Lead PDIP (Narrow .300 Inch) (Reference LTC DWG # 05-08-1510)
click to zoom

LTC1094ACN#PBF Details

  • Manufacturer Part Number:

    LTC1094ACN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    20 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    24.51 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC1094ACN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC1094ACN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input and output traces short and direct.
  • To optimize the performance of the LTC1094ACN in a noisy environment, use shielding, filtering, and decoupling techniques. Use a shielded enclosure, add ferrite beads or chokes to the input and output lines, and decouple the power supply lines with capacitors. Additionally, consider using a low-pass filter at the input to reject high-frequency noise.
  • The maximum operating temperature range for the LTC1094ACN is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Yes, the LTC1094ACN can be used with a single-ended input signal. However, it's recommended to use a differential input signal to take advantage of the device's common-mode rejection capabilities and to improve noise immunity.
  • To troubleshoot common issues with the LTC1094ACN, such as oscillations or instability, check the power supply voltage, input signal integrity, and output load impedance. Ensure that the device is properly decoupled, and the input and output traces are short and direct. Also, check for any layout or component issues that may be causing the problem.
